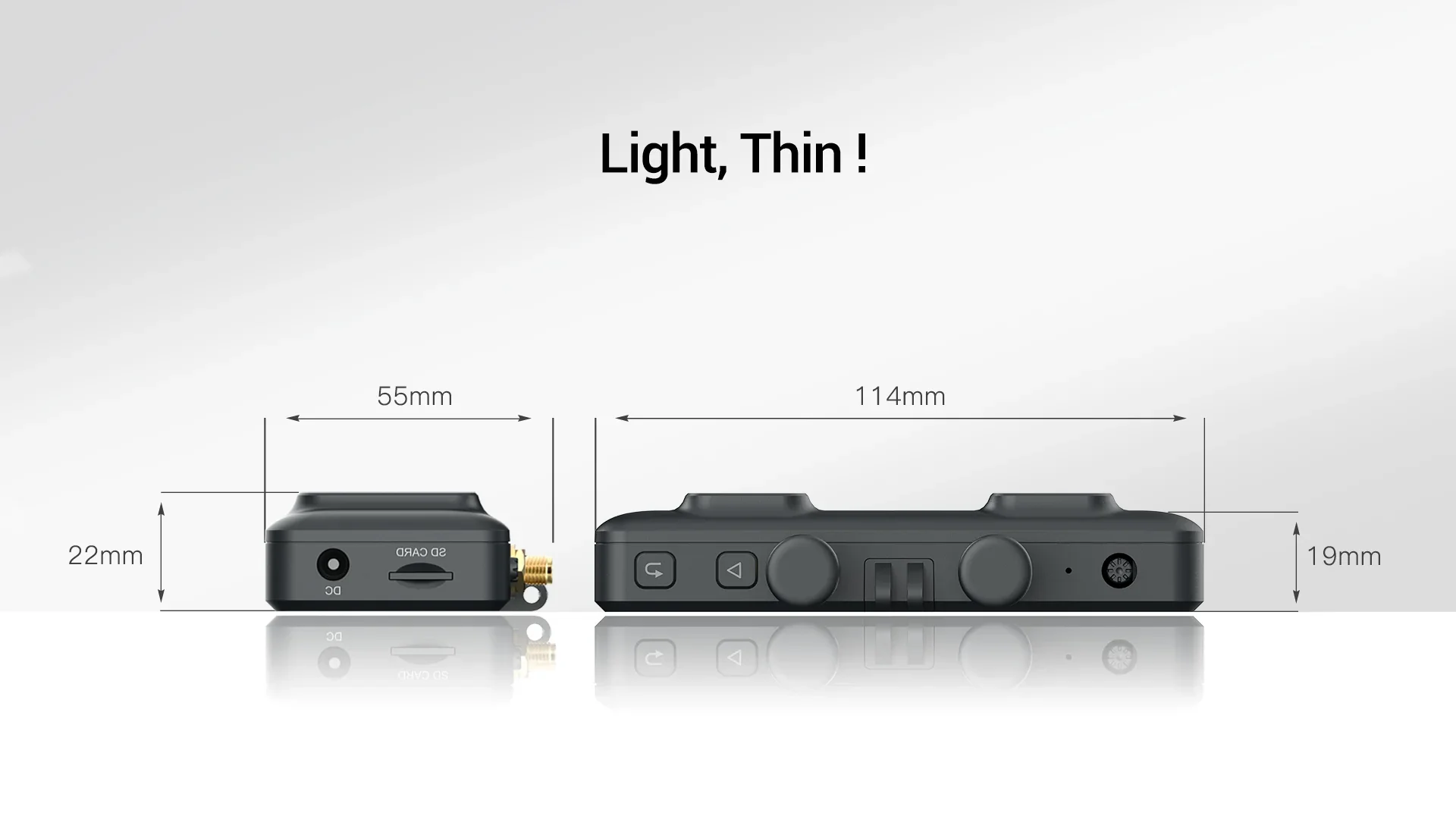

Lightweight design, ultra-thin experience Walksnail VRX only 83g and comes with 114*55*22mm size, easy to carry.

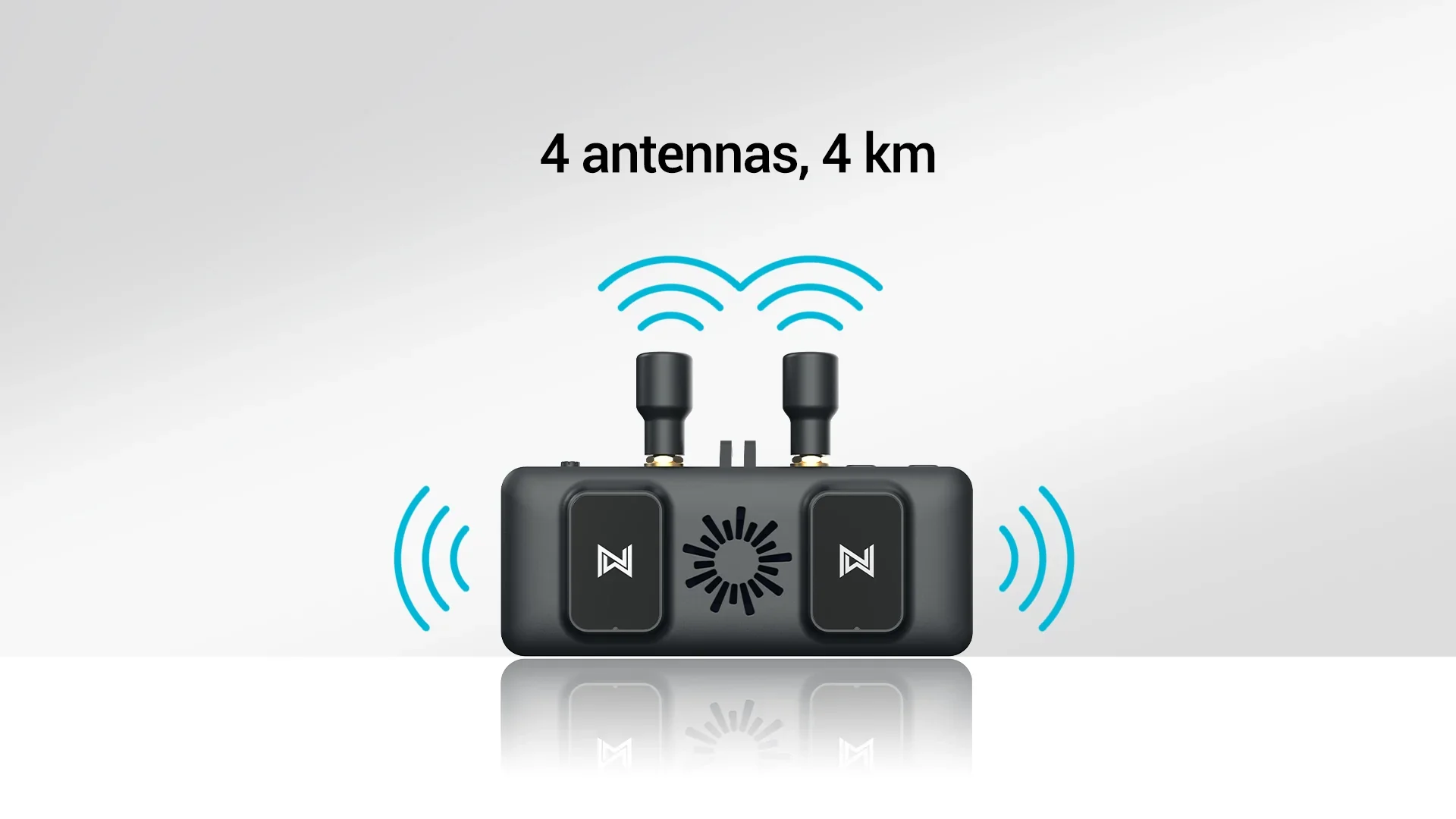

Walksnail VRX adopts 4 antenna design, 2 directional antennas, the maximum transmission distance is 4km

1080P/60FPS Walksnail VRX adopts industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p. The HD picture quality takes you to experience the fun of flying a drone.

HDMI output ensure you to enjoy uncompressed video signals from the Walksnail HD system

Canvas Mode Supports betaflight full OSD display,supports betaflight, inav, kiss full osd display you can easily adjust the parameters you want by remote control.

Specification

Camera Model Avatar nano/Avatar camera Image Sensor 1/2.7”1nch Resolution 1080P/60fps, 720P/120fps,720P/60fps Ratio 16/9 4/3 Lens 2.1mm FOV 170° Aperture F2.0 Shutter Rolling shutter Min. Illumination 0.001Lux Weight 3.5g/6g Dimensions 14*14*17mm/19*19*22mm Coaxial Cable 90mm/140mm VTX Model Avatar module Communication Frequency 5.725-5.850GHz Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm 1/O Interface JST1.0*6(Power in)JST1.0*4(USB) Mounting Holes 25.5*25.5mm Dimensions 33*33*9.5mm Storage 8G Recording 1080p/720p Weight 16g Operating Temperature -20-40℃ Channels 8 Wide Power Input 6V-25.2V Supported FC System Betaflight OSD Canvas mode Latency Average delay 22ms Antenna 2(IPEX) Goggles Antenna Model Red bird Polarization LHCP Bandwidth 5.6GHz- 6.0GHZ Average Gain 1.9dBi Radiation Efficiency ≥97% VSWR ≤1.3 Cross-Polar Rejection -15to-30dB Connector RP-SMA Dimension H24.8mm*R15.3mm Weight 4.2g Avatar HD VRX Model Avatar FPV VRX Communication Frequency 5.725-5.850GHz TransmitterPower(EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm I/OInterface HDMI,micro SD card slot, DC5.5*2.1mm HDMI Output 1080p60fps,720p100fps,720p60fps Power Input 7-21V(2S-5S) SDCard Support 256G System AvatarHDsystem Packing List Avatar FPV VRX ×1 Red Bird Antenna ×2 HDMI Cable ×1 2in1 DCPower Cable ×1 Avatar HD KIT ×1 4 Pin USB Cable ×1 6 Pin Power Cable ×1 M2x3/4/5mm Screws ×4 M1.2×1.5mm Screws ×2 Avatar HD Nano KIT ×1 4 Pin USB Cable ×1 6 Pin Power Cable ×1 M2x3/4/5mm Screws ×2 M1.2×1.5mm Screws ×2 14-19mm Bracket ×1 Avatar Mini 1S KIT ×1 4 Pin USB Cable ×1 6 Pin Power Cable ×1 M2x3/4mm Screws ×2 M2x16mm Screws ×4 M2 Screw nut ×4 2.1×3.4x1mm Gasket ×5
