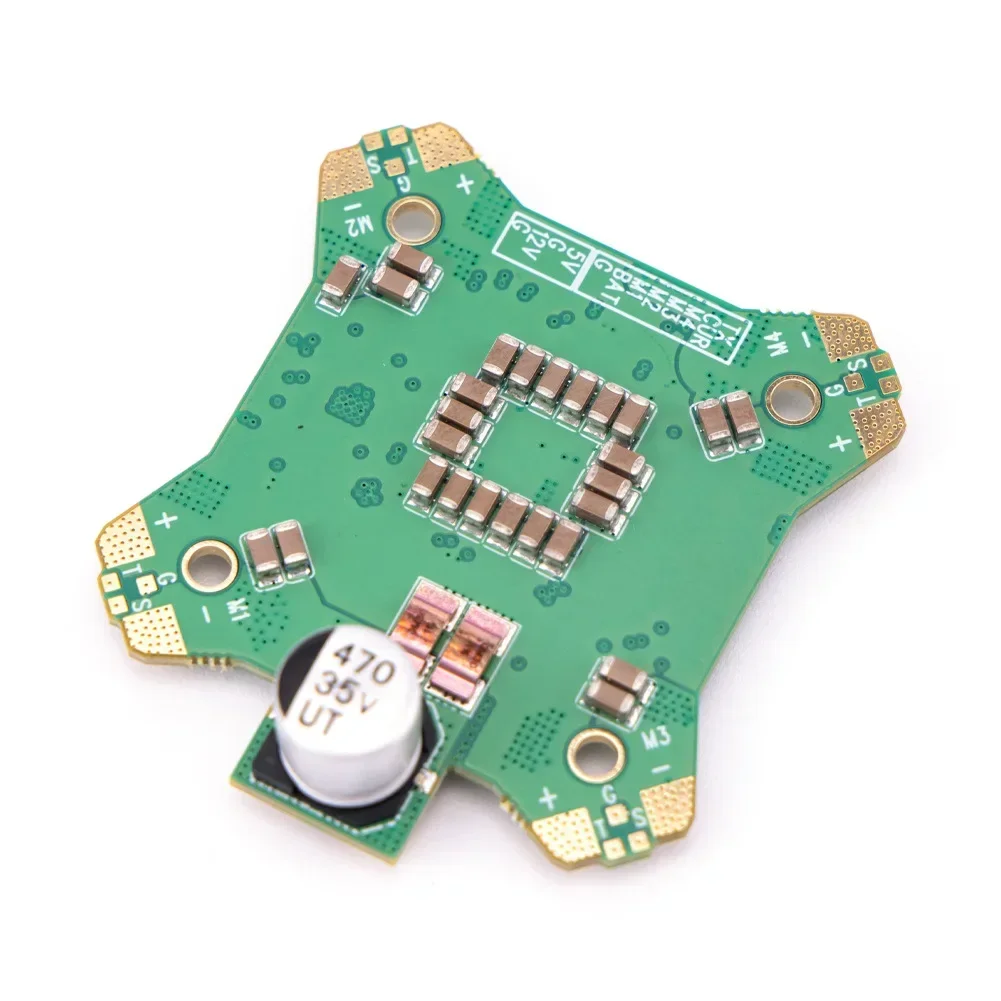

IFlight BLITZ PDB 55A/ PDB 80A Pro 4-8S Lipo 330A Power Distribution Board Dual BEC Output 5V/3A, 12V/2A for 5-7 Inch FPV Drone Features – BLITZ PDB

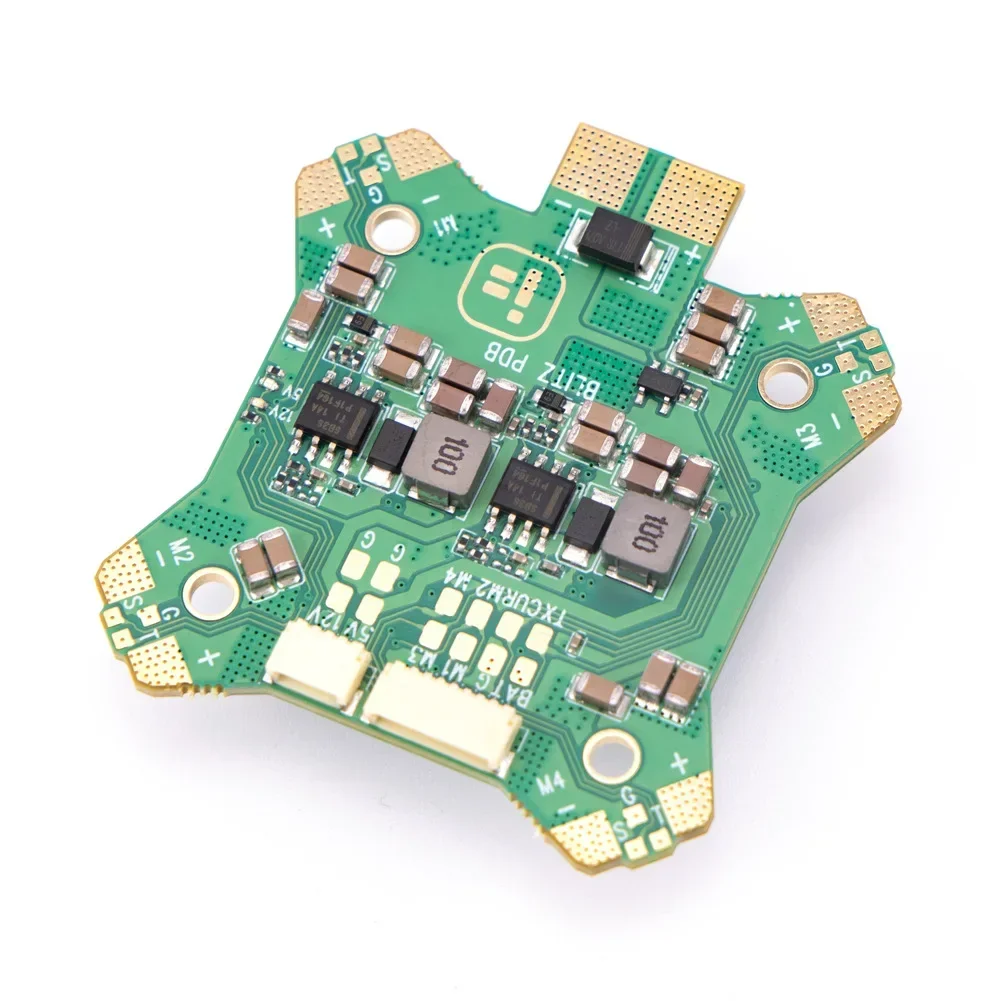

• A distribution board designed for 5 – 7 inch passers, with 4 layers of 20Z PCB specifications.
• The signals of the single ESC are unified into the SH1.0 interface, which can be directly plugged into the Starfox BLITZ F7 flight controller, making the assembly more efficient and concise.
• Onboard two automotive-grade Texas Instruments high-voltage DC-DC chips, supporting 4 – 8S LIPO battery input, dual output: BEC 5V/3A, 12V/2A. High compatibility. Provide stable and reliable voltage for the equipment.

• Frame size: 47*52mm
• Fixed hole size: 30.5*30.5/3
• Number of ESCs supported: Maximum 4 ESCs
• 5V BEC: 5V 3A
• 12V BEC: 12V 2A
• Maximum current meter range: 330A
• Ratio of current meter: 200(1/10mV/A)
• Telemetry: Supported (ESCs must support telemetry)

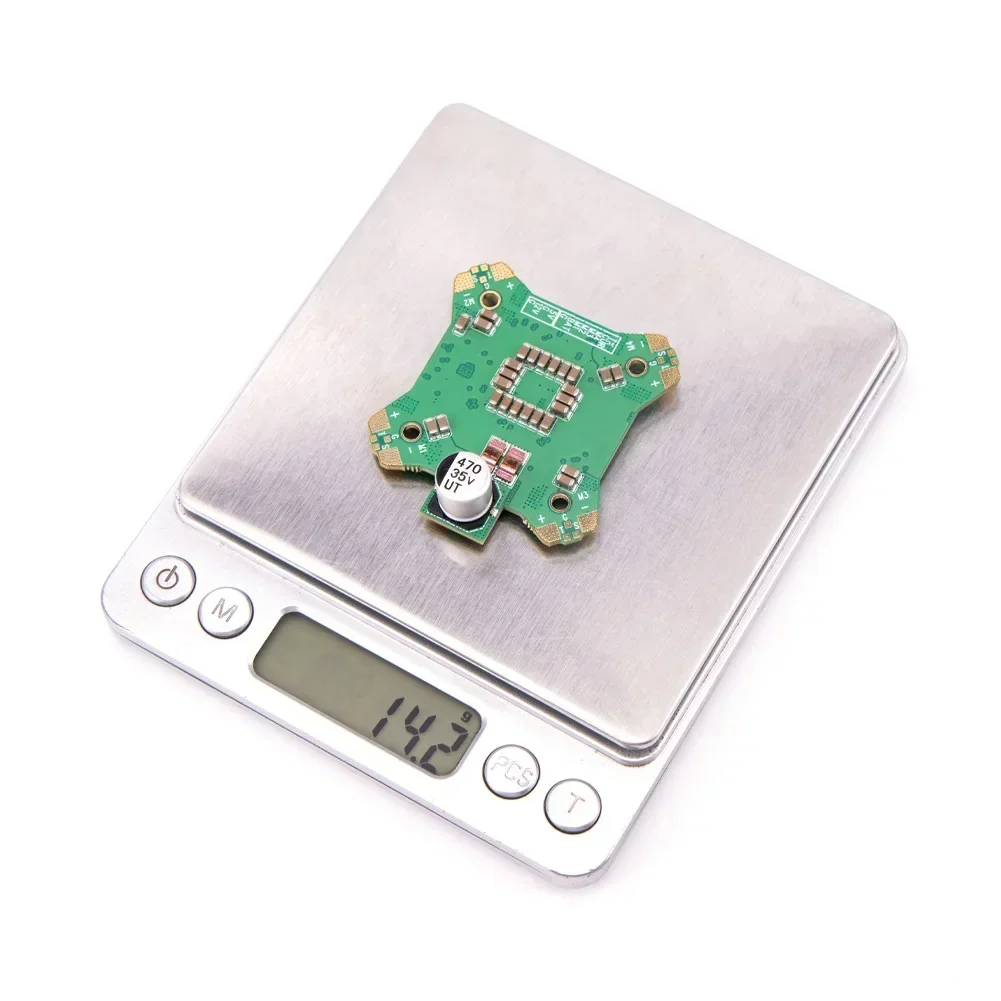

• Weight: 15g(±2)

Product Features – BLITZ PDB

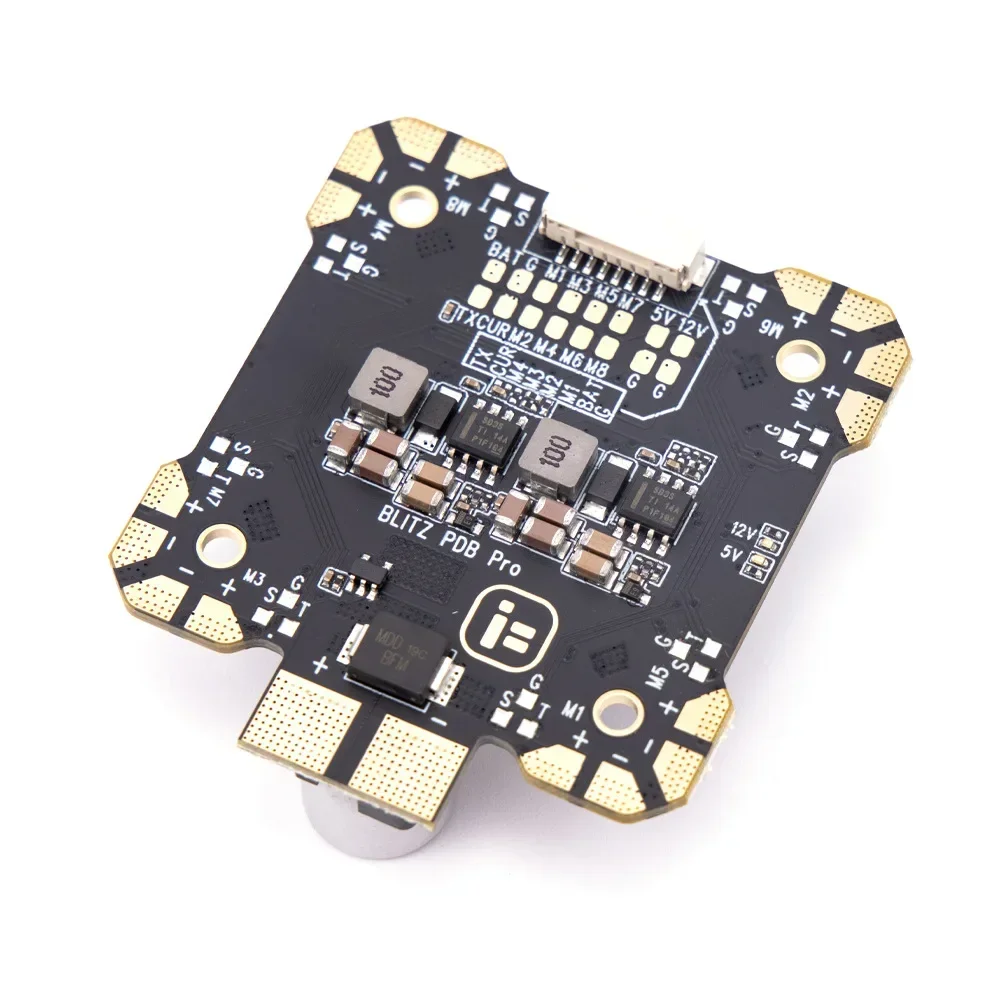

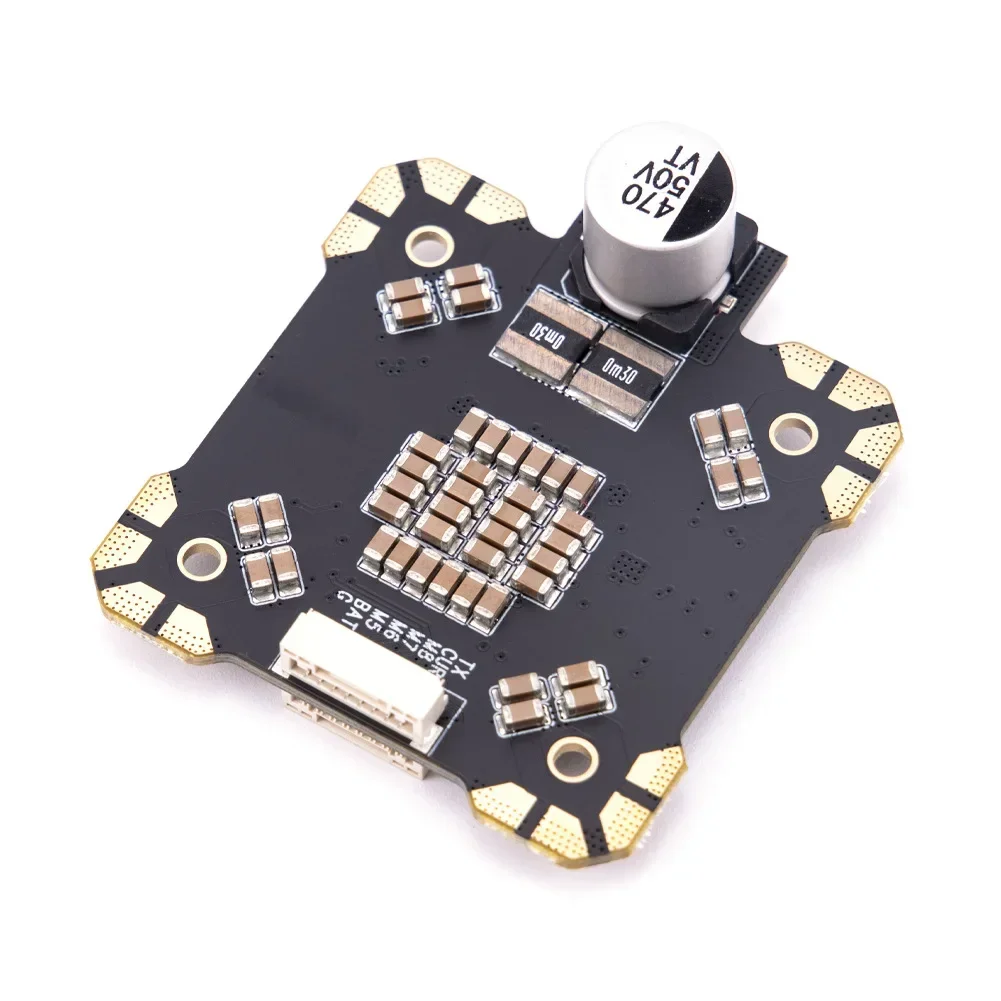

• Designed for movie-level X8, X4 or XCLASS models, high-voltage and high-current distribution board. Adopts 6-layer 2OZ PCB specifications.
• The signals of the single ESC are unified and collected on the GH1.25 interface, which can be directly plugged into the Star Fox BLITZ F7 Pro flight controller. Assembly is more efficient and simple.
• Onboard two-way automotive-grade Texas Instruments, high-voltage DC-DC chips. Support 4-8S LIPO battery input. Dual output: BEC 5V/3A, 12V/2A, high compatibility. Provide stable and reliable voltage for the device.

• Frame size: 51*58mm
• Fixed hole size: 35*35mm/3
• Number of ESCs supported: Maximum 8 ESCs
• 5V BEC: 5V 3A
• 12V BEC: 12V 2A
• Maximum current meter range: 330A
• Ratio of current meter: 200(1/10mV/A)
• Telemetry: Supported (ESCs must support telemetry)

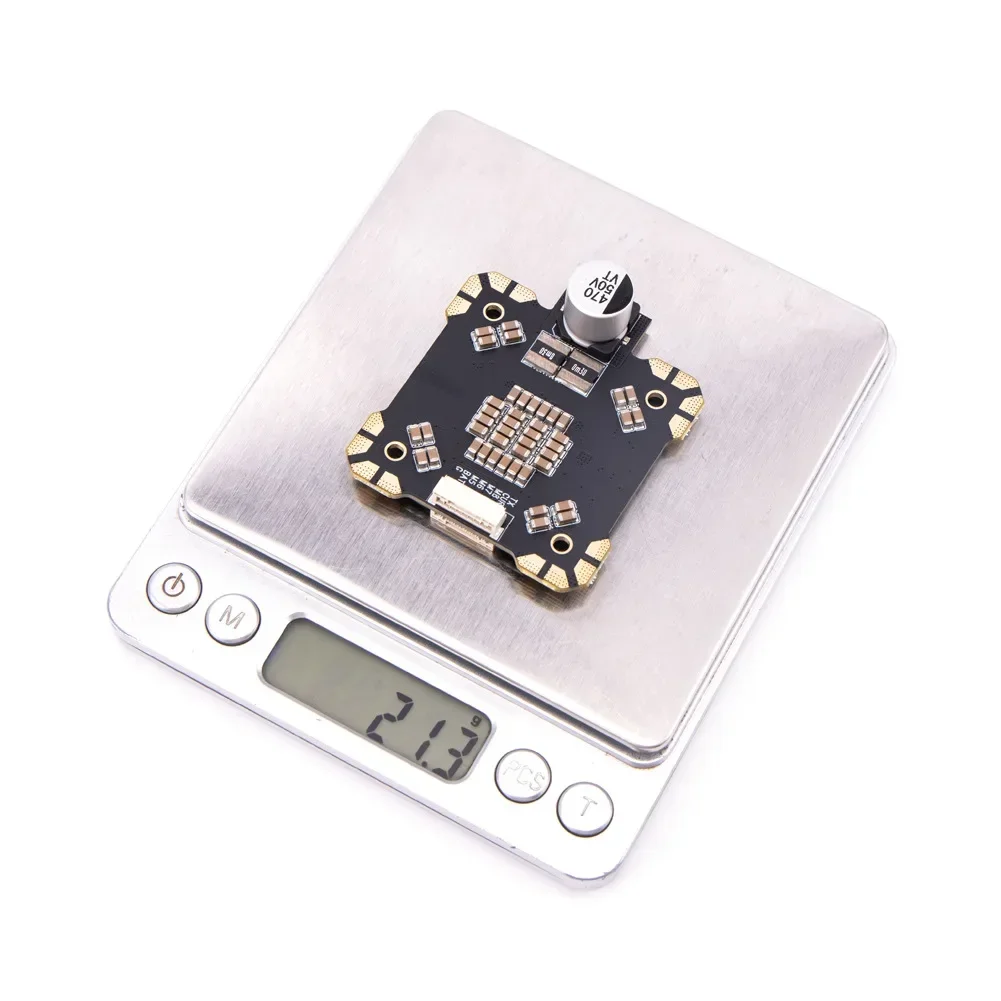

• Weight: 22g(±2)
