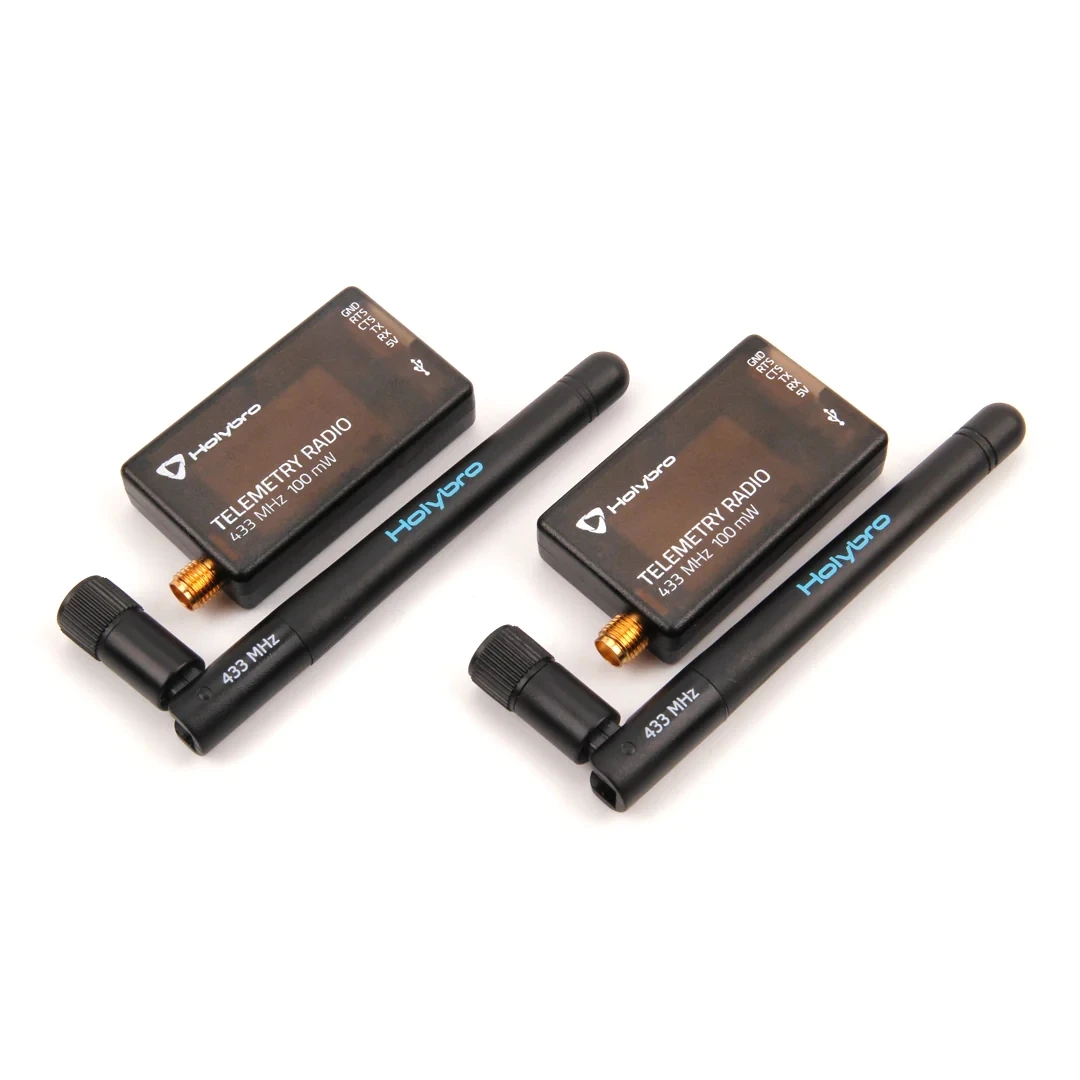

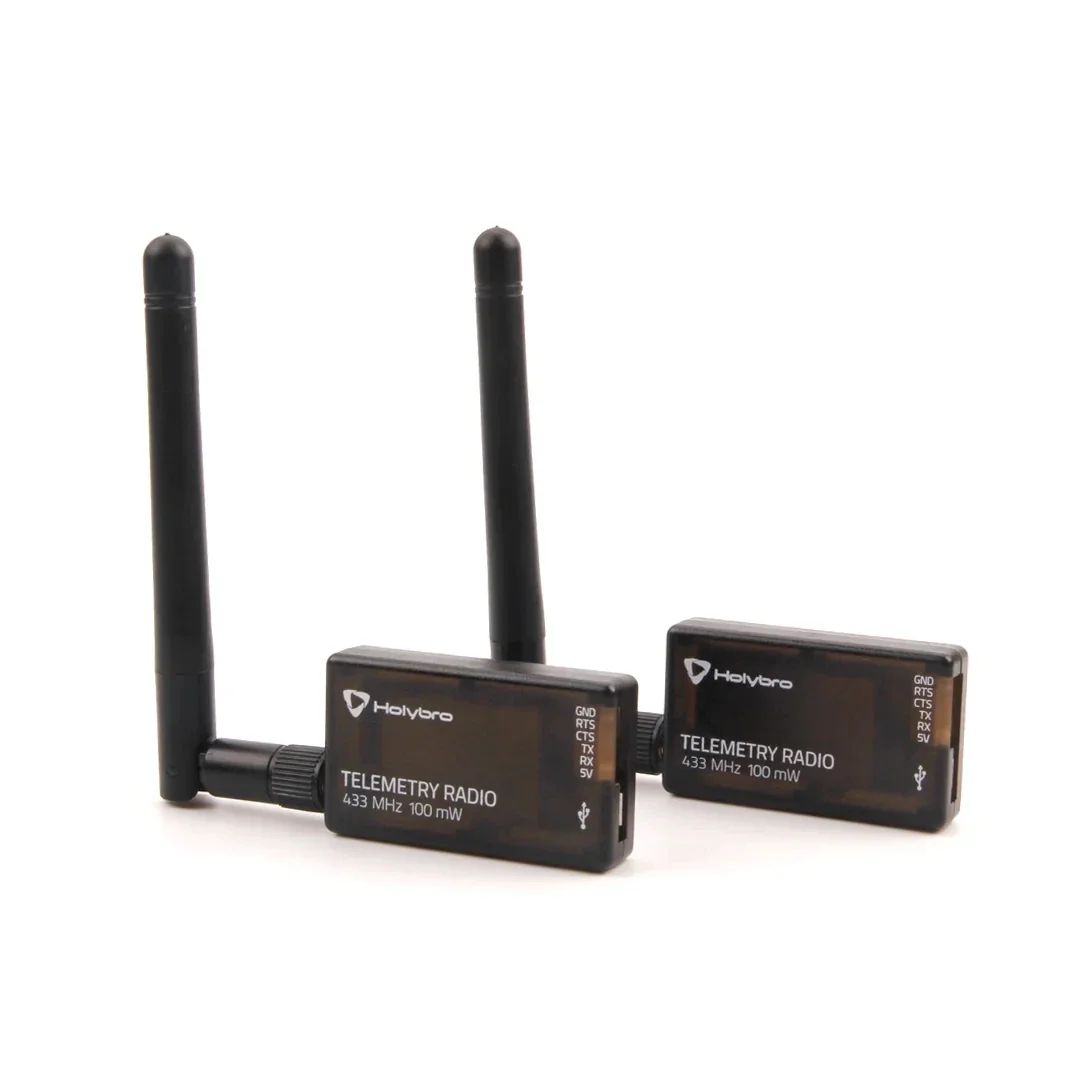

HolyBro SiK Telemetry Radio V3 433/915MHz Long Range Data Link for Drone UAV PX4 Pixhawk Flight Controller
Price
Secure payments
Share
Share
Share
Description
Description
Overview
This Holybro SiK Telemetry Radio is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground).
This radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to setup a telemetry connection between your Autopilot and a ground station. It uses open source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot.

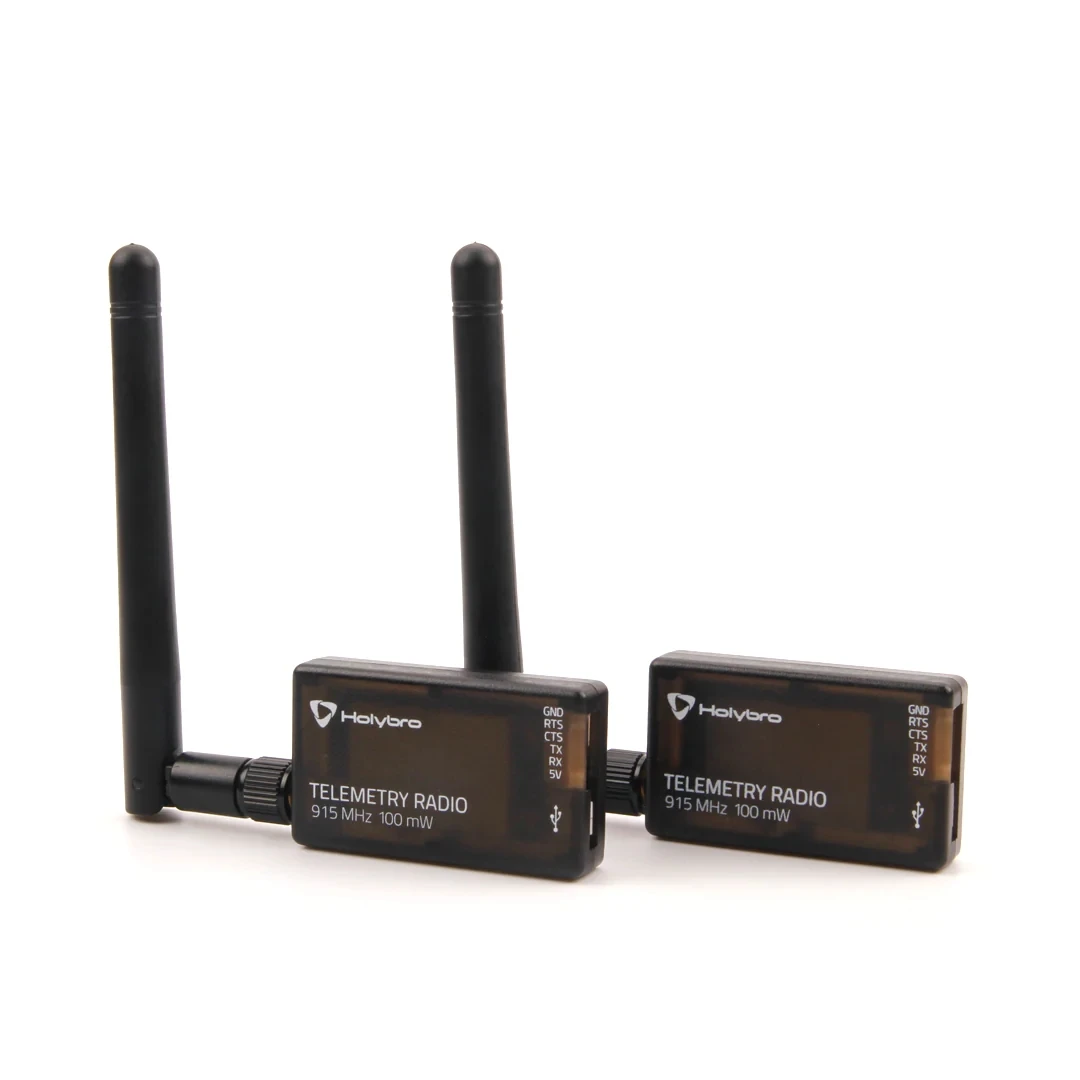

The radios can be either 915Mhz or 433Mhz and you should purchase the model which is appropriate for your country/region.Note:
This radio does not support firmware upload via Mission Planner 1.3.75 or order. Please use Mission Planner 1.3.75.1 or newer if firmware upload is needed.Features
Open-source SIK firmware
Plug-n-play for Pixhawk Standard Flight Controllers
Easiest way to connect your Autopilot and Ground Station
Interchangeable air and ground radio

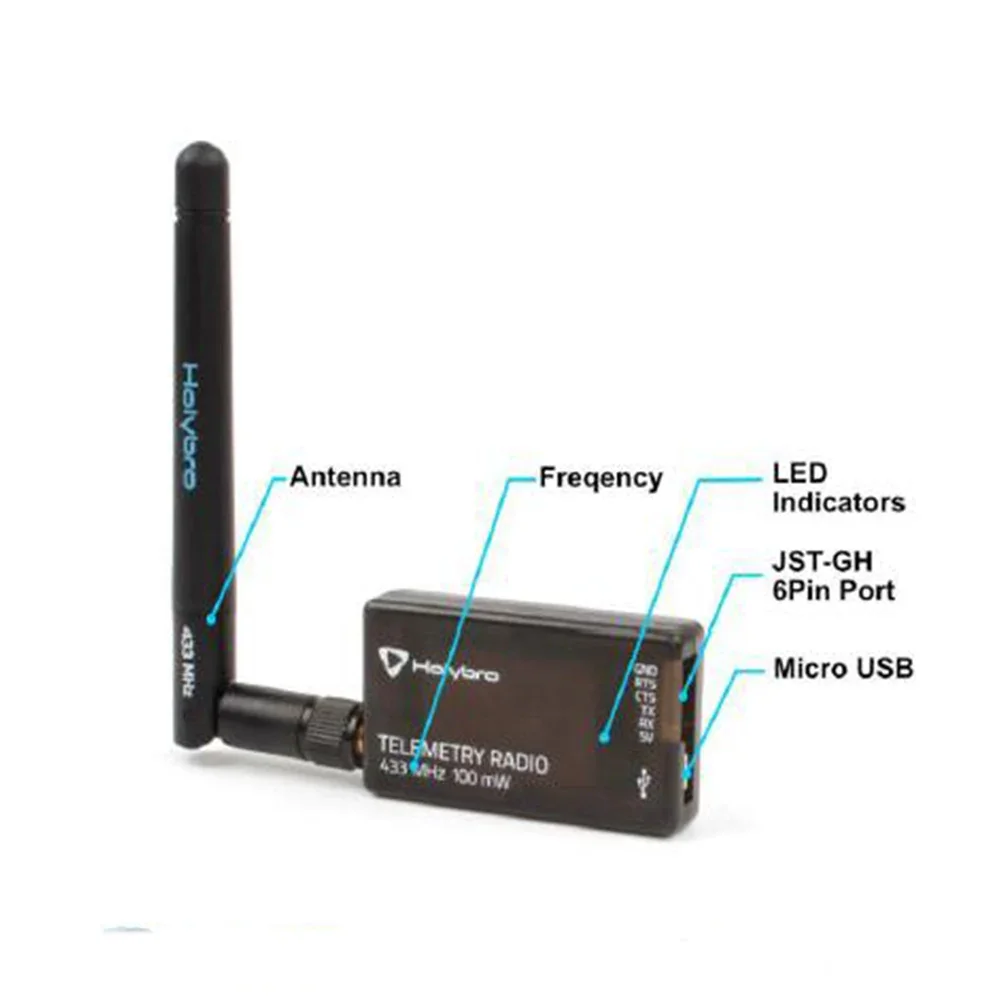

Micro-USB port (Type-C Adapter Cable Included)

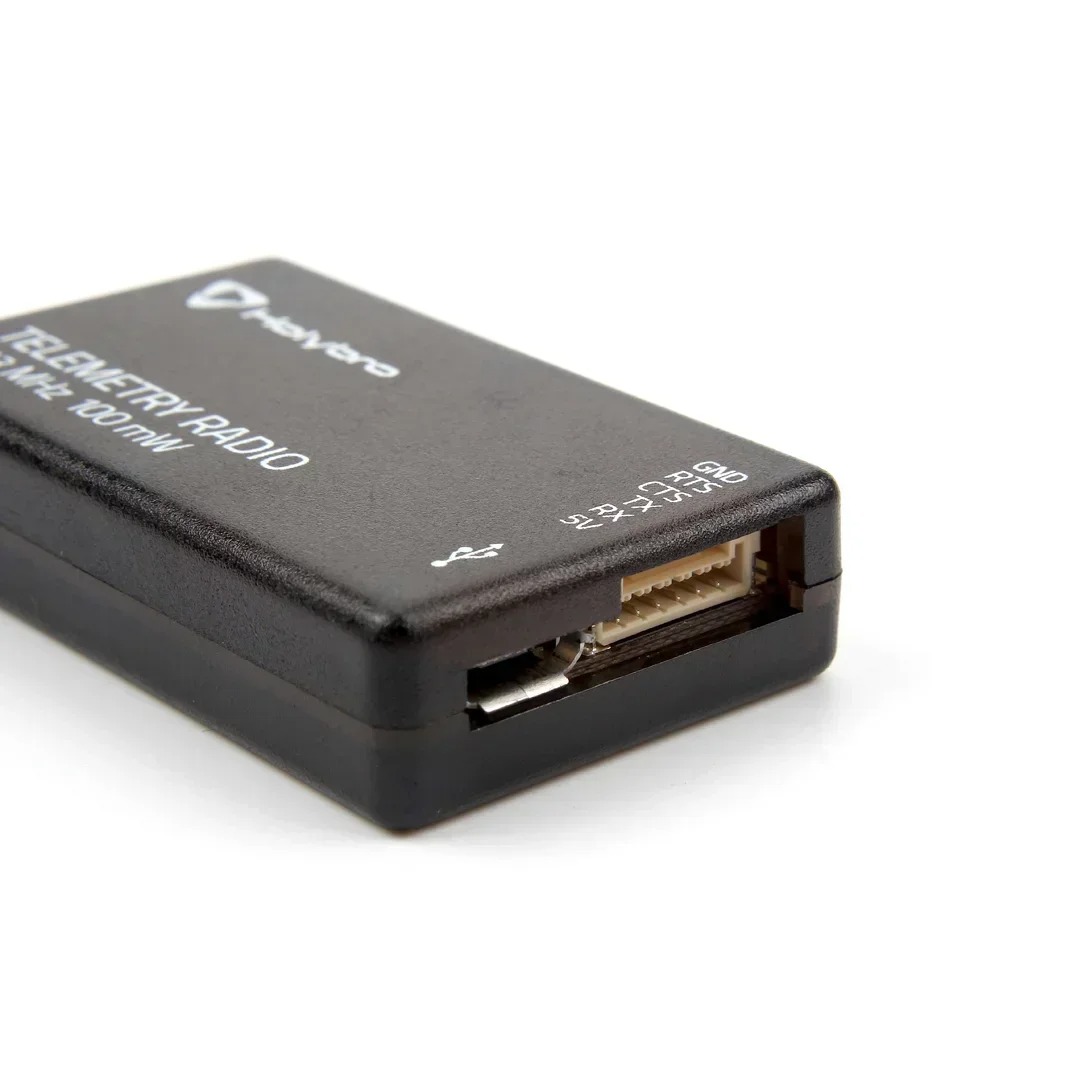

6-position JST-GH connector
Specification
100 mW maximum output power (adjustable) -117 dBm receive sensitivity

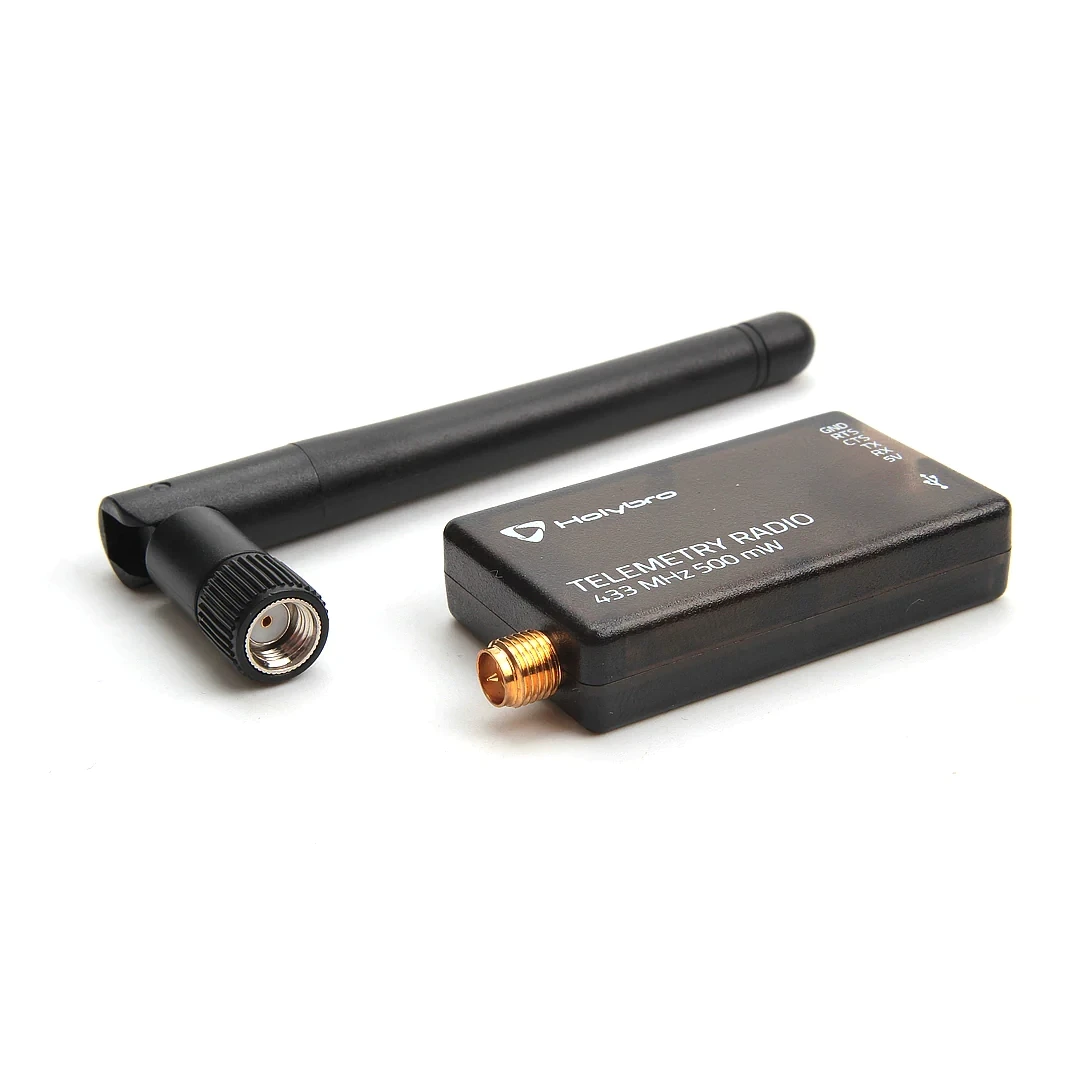

RP-SMA connector
2-way full-duplex communication through adaptive TDM UART interface
Transparent serial link
MAVLink protocol framing
Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
Error correction corrects up to 25% of bit errors Open-source SIK firmware
Configurable through Mission Planner & APM Planner
FT230X is a USB to BASIC UART IC
Dimensions
28 x 53 x 10.7mm (without antenna)
Electrical Data
Supply voltage: 5V DC (from USB or JST-GH)
Transmit current: 100 mA at 20dBm
Receive current: 25 mA
Serial interface: 3.3 V UART

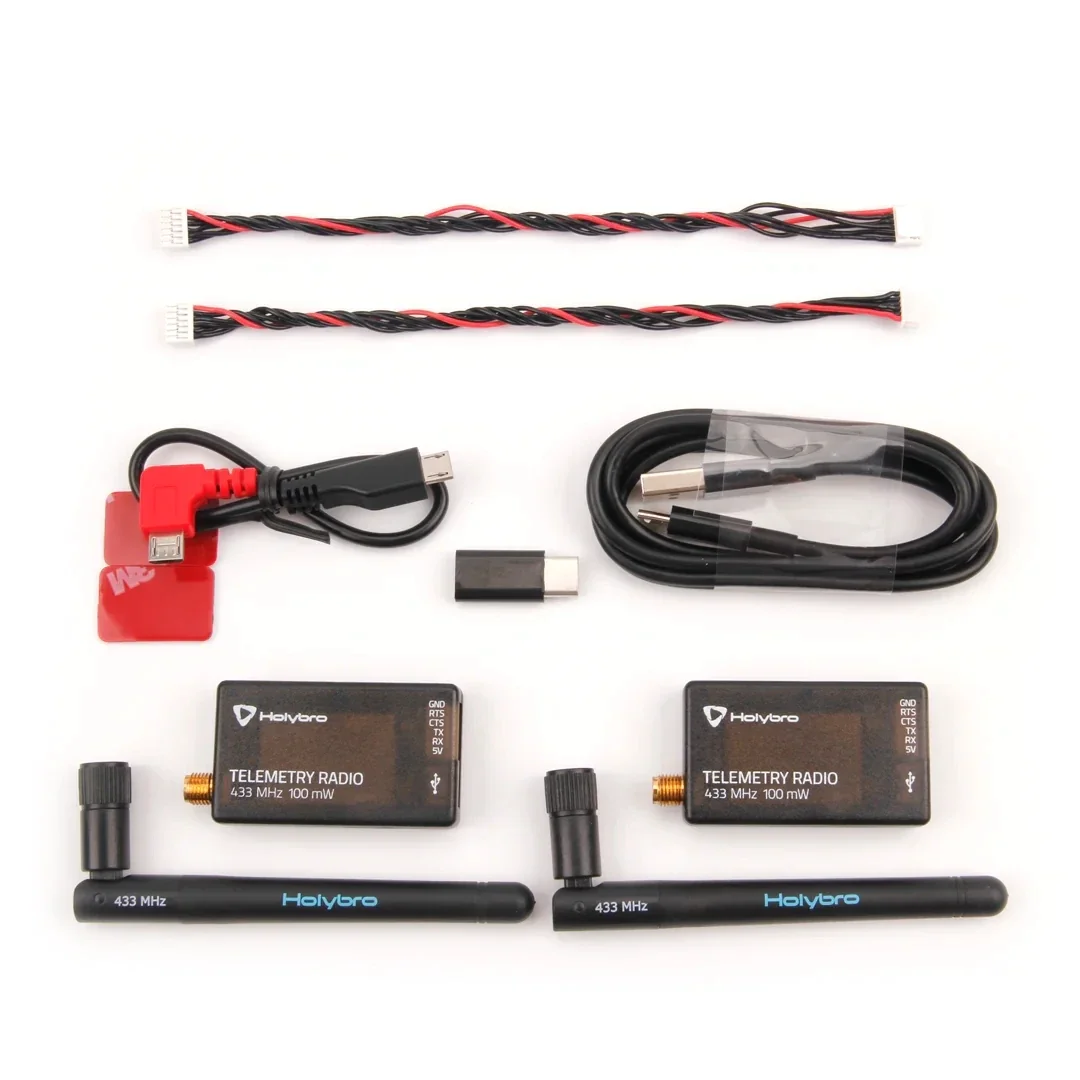

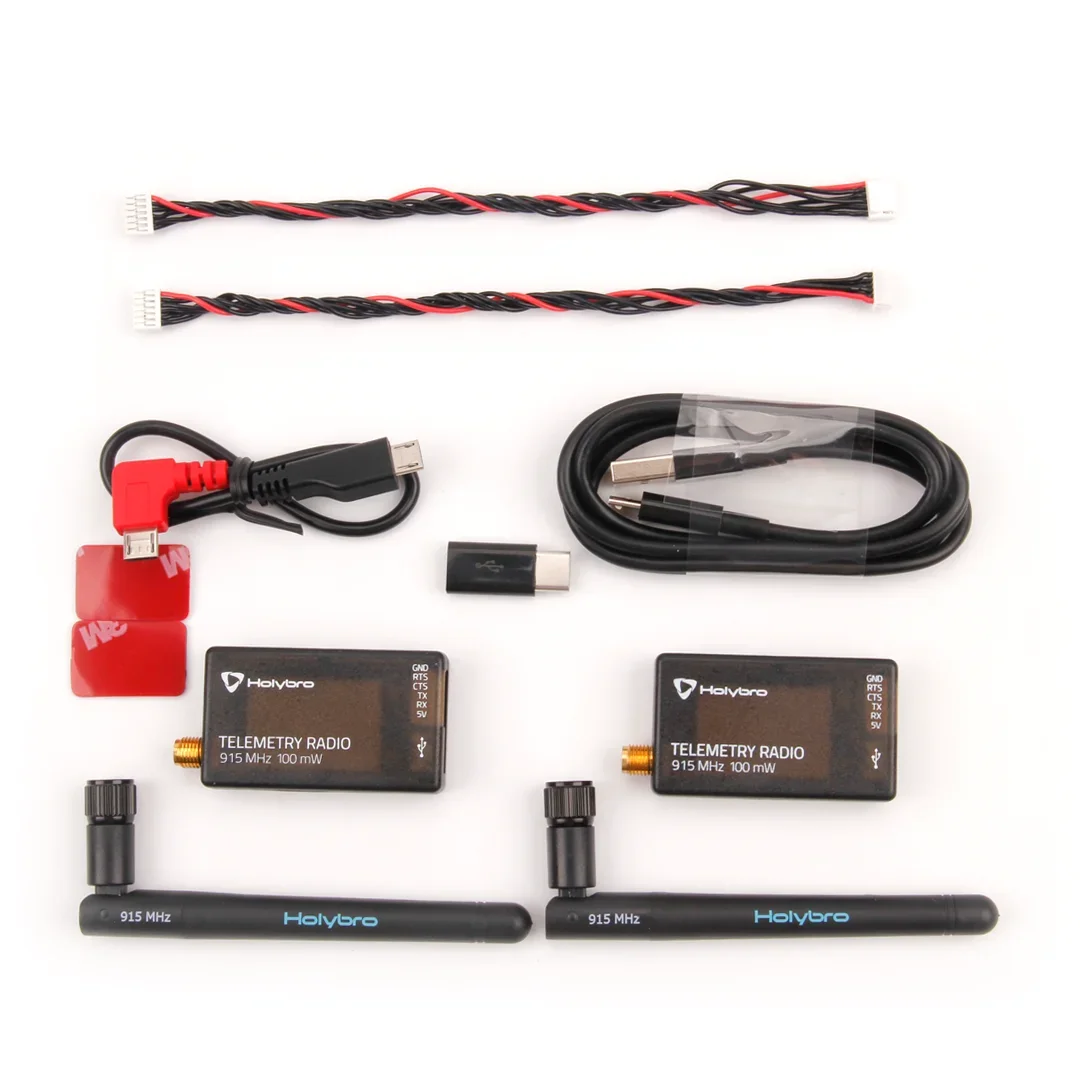

Package Included
Radio modules with antennas *2
Micro-USB to USB-A cable *1
Micro-USB to Micro-USB OTG adapter cable *1
Micro USB to Type C Adapter
JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
Material: Composite MaterialnPerformance: 100mW Maximum Output Power, 117dBm Receive SensitivitynCompatibility: Plug-n-play with Pixhawk Standard Flight ControllersnFrequency Options: 915MHZ or 433MHZ, select based on regionnConnectivity: Micro-USB Port with Type-C Adapter Cable IncludednSize & Weight: Compact Design at 28 x 53 x 10.7mm (without antenna)nnn|Apm Radio|Mission Planner Sik Radio|nn**Unmatched Reliability and Connectivity**nThe HolyBro SiK Telemetry Radio V3 is an indispensable tool for drone enthusiasts and professionals alike. With its robust composite material build and advanced telemetry capabilities, this radio ensures a stable and reliable connection between your drone and ground station. The plug-n-play compatibility with Pixhawk Standard Flight Controllers makes it a seamless addition to your setup, enabling you to focus on your flight without the hassle of complex configurations.nn**Versatile and User-Friendly**nThis telemetry radio is not just a piece of hardware; it’s a gateway to a world of possibilities. It supports both the 915MHZ and 433MHZ frequencies, allowing users to choose the most suitable option for their region. The radio’s open-source SIK firmware is easily customizable through Mission Planner and APM Planner, providing a transparent serial link and MAVLink protocol framing for optimal control and data transmission. The inclusion of a Micro-USB port with Type-C Adapter Cable ensures compatibility with a variety of devices, while the 2-way full-duplex communication through its adaptive TDM UART interface allows for smooth, bi-directional communication between your drone and ground station.nn**Designed for Performance and Durability**nThe HolyBro SiK Telemetry Radio V3 stands out with its impressive performance metrics. With a maximum output power of 100mW and a receive sensitivity of 117dBm, it offers a substantial range, capable of reaching up to several kilometers with the addition of a patch antenna on the ground. The radio’s compact dimensions, combined with its lightweight design, ensure that it can be easily integrated into a wide range of airplanes and remote control toys, without adding unnecessary bulk or weight. Whether you’re a seasoned pilot or a tech-savvy hobbyist, this radio is an essential tool for anyone seeking to enhance their drone’s telemetry capabilities.
