Happymodel EX1204 5000KV 6500KV Brushless Motor for 2-4S Whoop FPV Drone, Lightweight & Powerful
Price
Secure payments
Share
Share
Share
Description
Description
Description

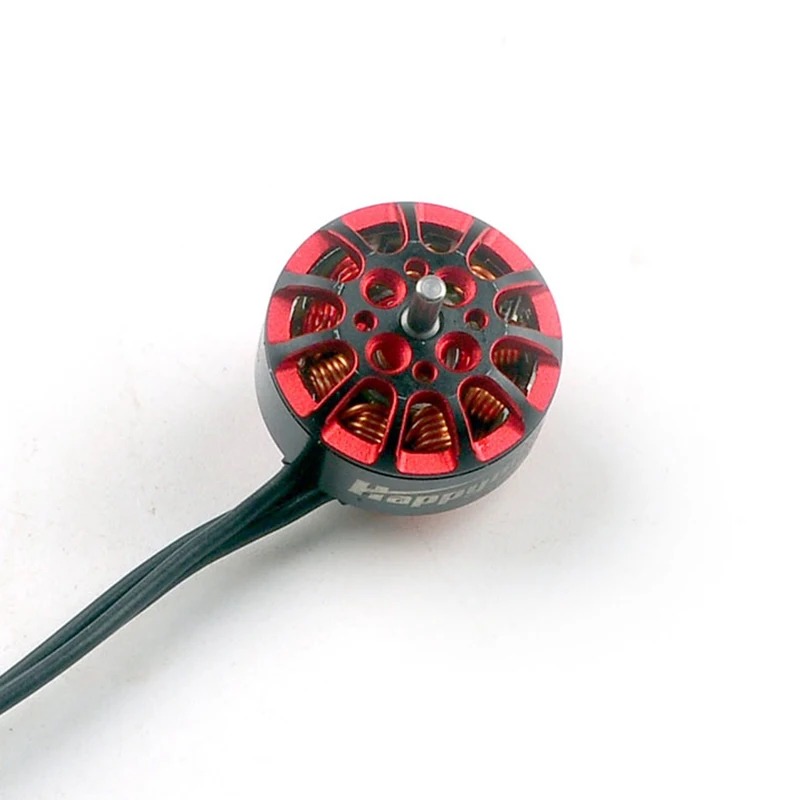

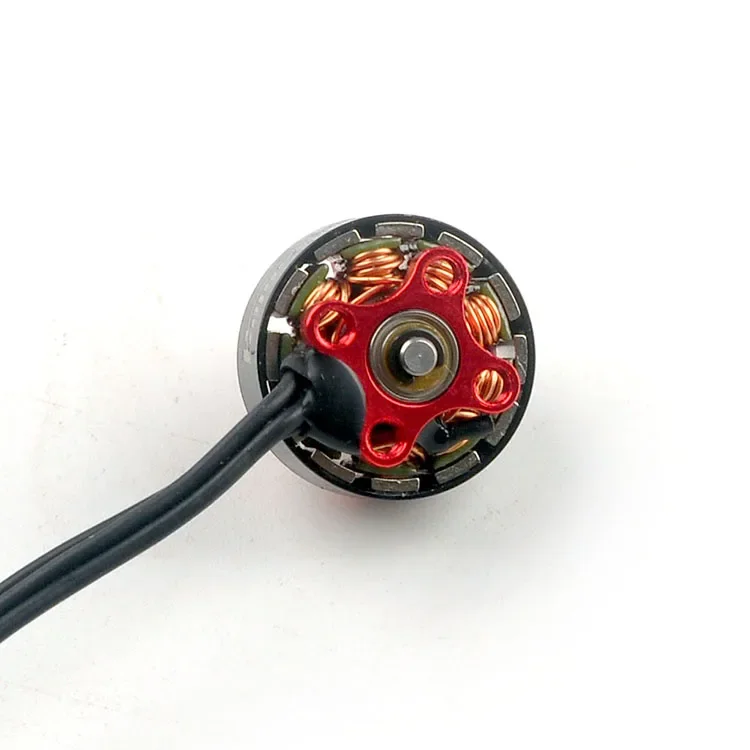

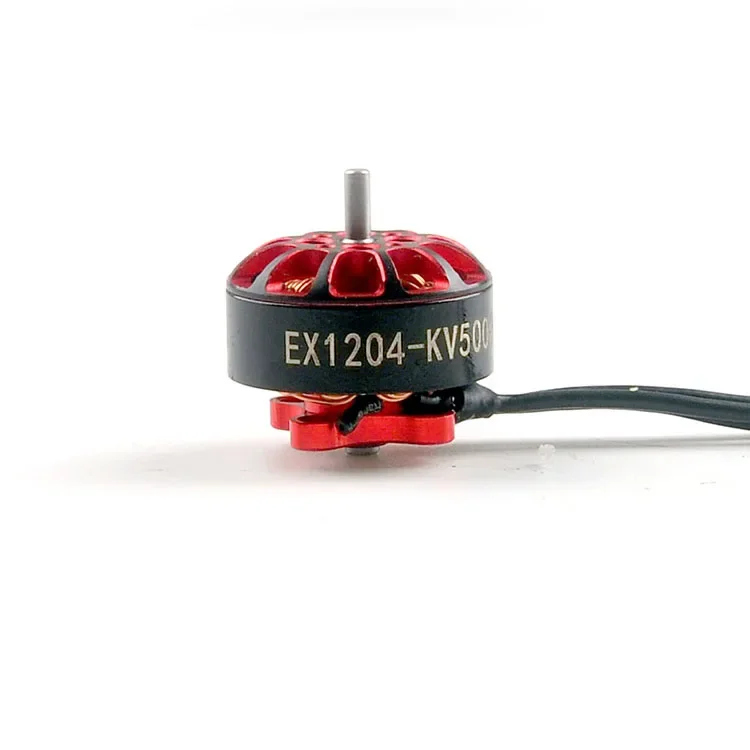

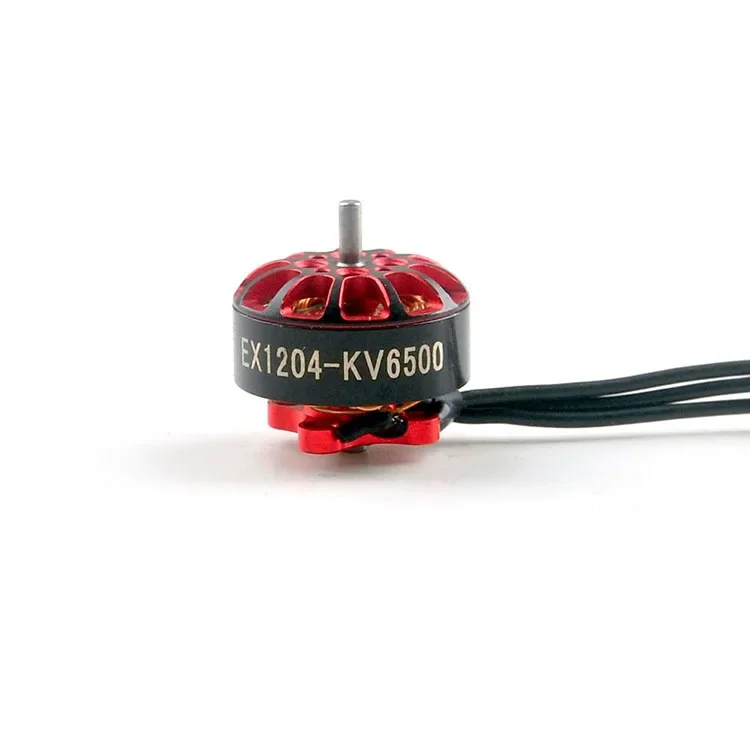

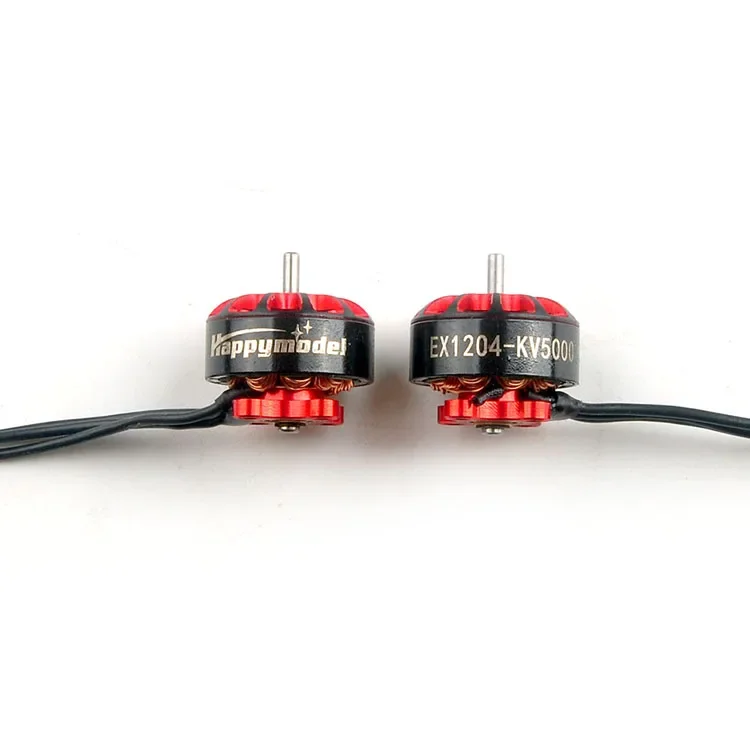

Happymodel new EX1204 brushless motor, weighs only 5.9g, cool design, imported NMB double bearings, 2mm inner shaft, efficient, durable and smooth,
there are two KV values to choose from, KV5000 or KV6500, 3 inch advanced Micro brushless Excellent power choice for Racing drone.
1.5mm motor output shaft, line length 60mm

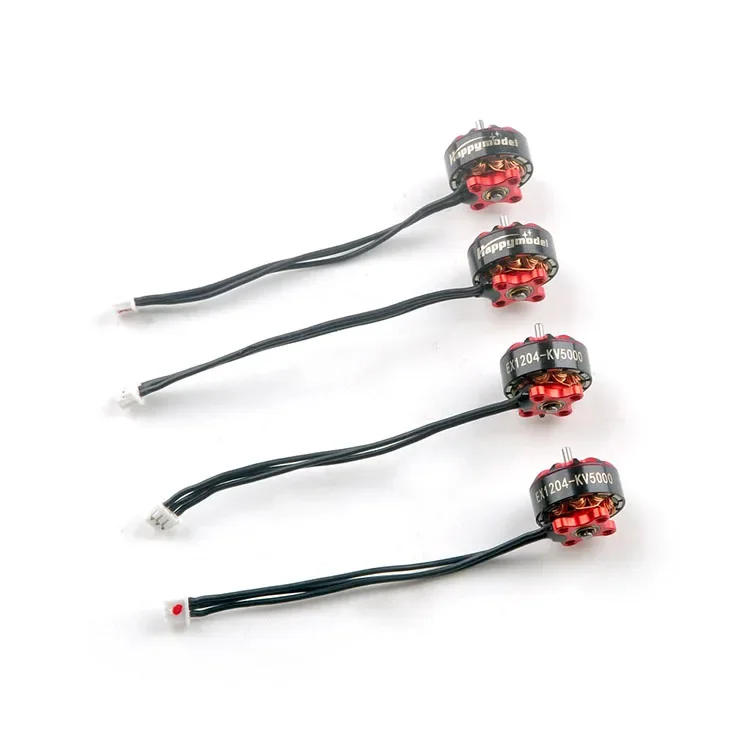

The black wire (plug marked with red dots) is used with Crazybee series flight control for CW steering (can be reversed in BLHELI)
The black wire (plug without red dot) is used with Crazybee series flight control. It is CCW steering (can be reversed in BLHELI)
Mode: EX1204
KV option: KV5000 or KV6500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:4mm
Inner Shaft Diameter:Φ2mm
Outer Shaft Diameter:Φ1.5mm

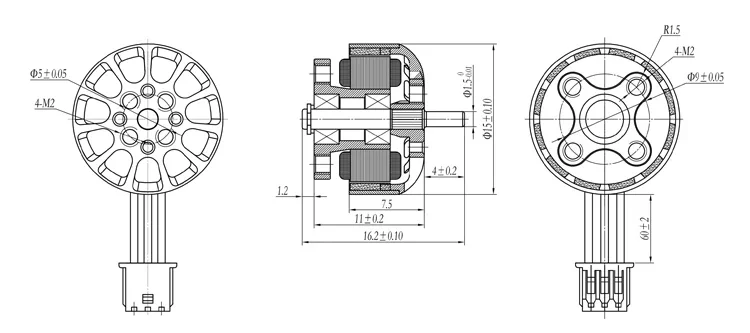

Motor Dimension(Dia.*Len):Φ15mm*16.2mm

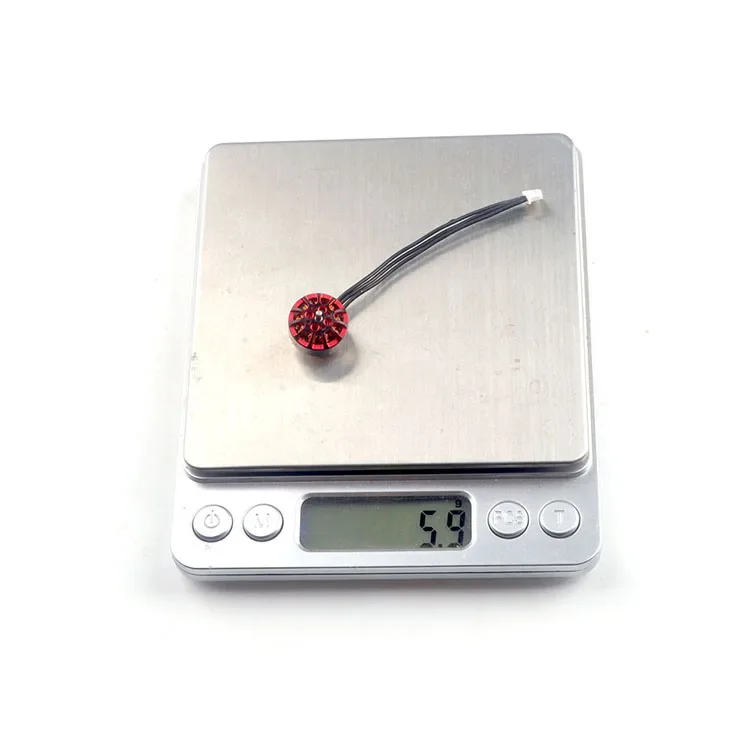

Weight(g):5.9g
No.of Cells(Lipo):
KV5000 support 2-4s
KV6500 support 2-3s
Package include:

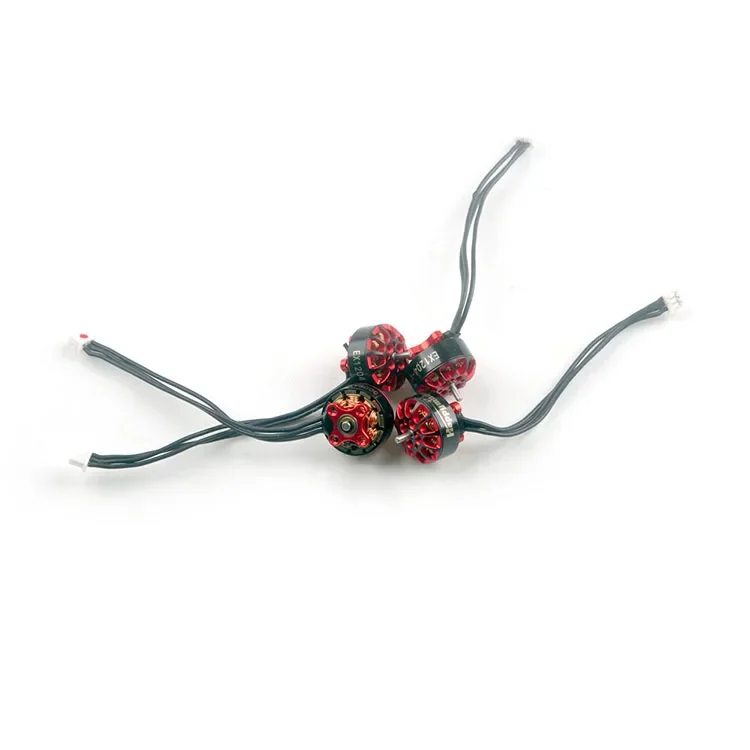

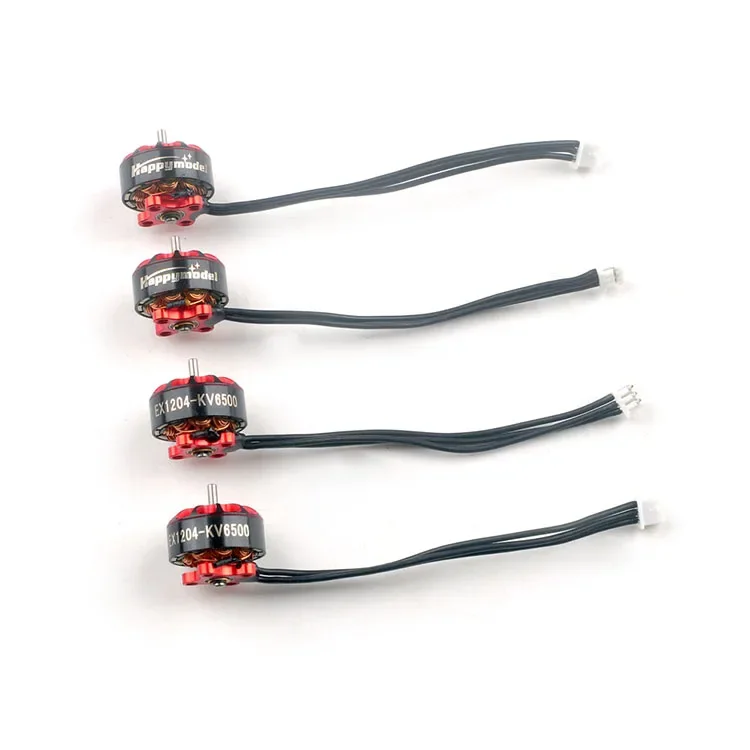

1/4pcs Happymodel EX1204 Motor
Specifications:
Material: High-quality PCB, NMB bearings
Design and Style: Sleek, compact design with 1.5mm shaft
Performance and Property: Efficient, durable, smooth operation
Parts and Accessories: Includes 1/4pcs Happymodel EX1204 Motor
Usage and Purpose: Ideal for FPV racing drones, 3-inch toothpick builds
Applicable Scenario: Suitable for 2-4S or 2-3S Lipo batteriesFeatures:
|Myc Motor|1 2 Hp Dc Motor|3d Printed Brushless Motor|**Advanced Engineering for FPV Enthusiasts**
The Happymodel EX1204 Brushless Motor is a marvel of engineering, designed specifically for the high-performance demands of FPV racing drones. This lightweight motor, weighing just 5.9g, is equipped with imported NMB double bearings, ensuring a smooth and efficient flight experience. The motor’s 1.5mm shaft is not only robust but also allows for a wide range of compatibility with various drone builds. The compact design and lightweight construction make it an ideal choice for 3-inch toothpick drones, where every gram counts.
**Optimized for Performance and Durability**
With two KV options available-KV5000 for 2-4S Lipo batteries and KV6500 for 2-3S Lipo batteries-the Happymodel EX1204 Motor caters to different flight styles and power requirements. The 9N12P configuration ensures a stable and reliable power output, while the 12mm stator diameter and 4mm stator length provide ample power for aggressive maneuvers. The motor’s robust build quality is further complemented by its ability to withstand the rigors of FPV racing, making it a reliable choice for both amateur and professional pilots.
**Versatile and User-Friendly**
The Happymodel EX1204 Motor is designed to be user-friendly, with a clear distinction between the black wires for CW and CCW steering. This feature allows for easy setup and configuration, making it a breeze for pilots to switch between different flight modes. Whether you’re a seasoned FPV racer or a hobbyist looking to upgrade your drone’s performance, the Happymodel EX1204 Motor is a versatile addition to your racing drone’s parts and accessories. With its sleek design, lightweight build, and advanced engineering, it’s a motor that doesn’t just power your drone-it elevates your flying experience.
