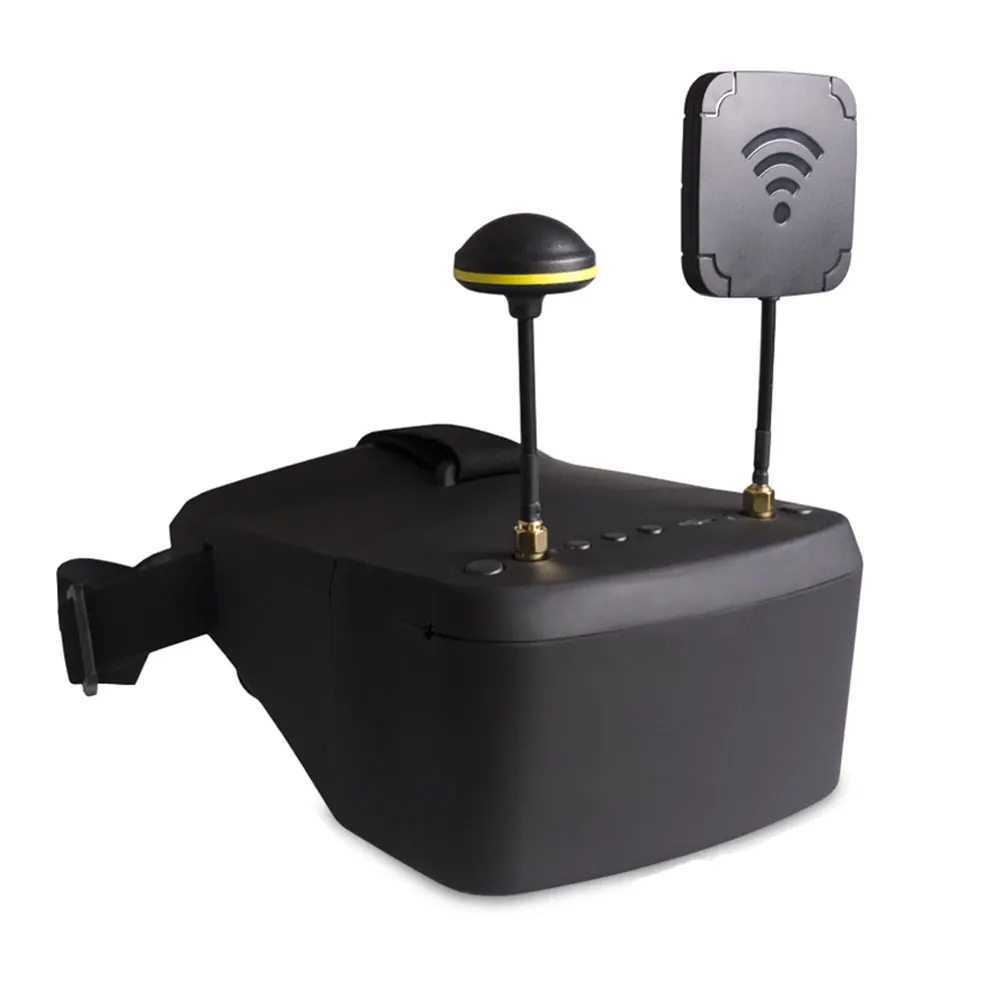

EV800D FPV Goggles 5.8G 40CH 5-Inch 854*480 Video Headset DVR Diversity for RC Drone with Helmet Battery Included
Price
Secure payments

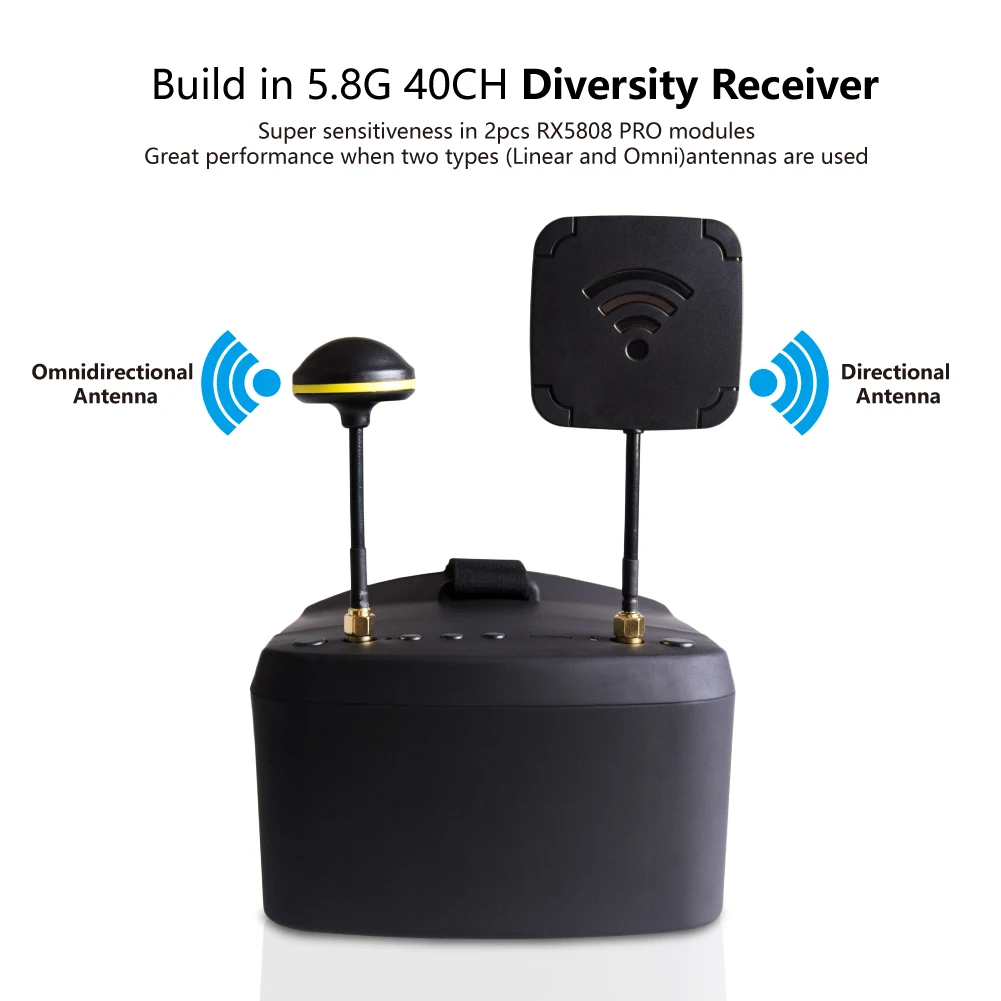

EV- 800D is an exceptional pair of FPV goggles at a low price. Compared with other FPV goggles, it has a bigger and clearer display – 5 inch 854 x 480; its built-in DVR supports up to 128GB micro SD card for recording 720 x 480 videos. More importantly, two sets of chips are dedicated to displaying and recording respectively, so you are able to have an enjoyable aerial view with maximum fluency. Main Features: 5 inch big screen, 854 x 480 HD display, 82-degree FOV for FPV racing Built-in DVR supports recording 720 x 480 videos and up to 128GB micro SD card Separated chips for displaying / recording, which ensures no latency and no frame lost Maximum signal coverage with dual receivers and antennas + channel auto searching 3.7V 2000mAh LiPo battery provides up to 2h operation time after each full charge Specifications: Display Screen size: 5.0 inches Resolution: 854 x 480 ( no blur after enlarge by the lens ) Brightness: 450cd / square meter Screen type: LED-backlit LCD for outdoors Aspect ratio: 16:9 FOV: 82 degree Lens: 3x boost of the image DVR Video recording: 720 x 480 ( AVI ) Supported micro SD card: up to 128GB ( Class 10 required ) Connectivity Diversity receiver: 2 x RX5808 Sensitivity: -90dBm Frequency: 5.8GHz Number of channels: 40 Auto searching: yes Antenna: 14dBi flat, 14dBi mushroom Interface: micro USB Type-B, 3.5mm video input Power Supply Built-in battery: 3.7V 2000mAh LiPo Operation time: 2 hours Charger: 5V 2A Charge time: 4.5 hours
Specification:
| Model | |||||||||
| Name | 5.8G FPV Goggles | ||||||||
| LCD Screen | Screen size:5Inch | ||||||||
| Resolution:800*480 | |||||||||
| Display Ratio: 16:9 | |||||||||
| View Angle: 6 o’clock | |||||||||
| Brightness: 300cd/m² with high brightness backlight LED | |||||||||
| Video delay | Video time-delay less than 20ms | ||||||||
| Lens | 2.8X Fresnel Lens, 92% transparent rate no distort of light | ||||||||

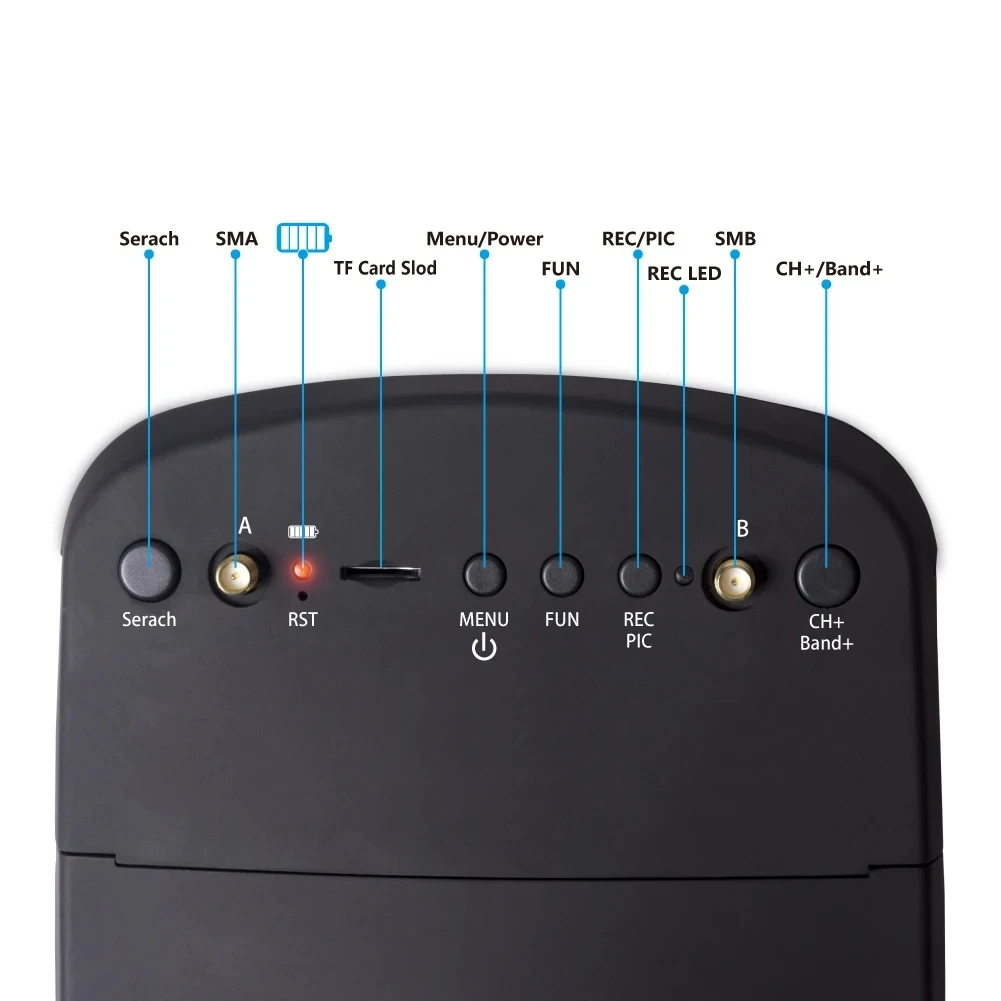

| Interface | Antenna | 2 X RP-SMA male | |||||||
| USB | To charge the battery | ||||||||
| AV Jack | External video signals input or internal Audio signal output | ||||||||
| Card slot | TF-Card, Support up to64G(C10 recommend) | ||||||||
| DVR | REC size: VGA / D1 / HDSelectable | ||||||||
| REC sound:ON / OFFSelectable | |||||||||
| REC time: OFF / 3min / 5min / 10minSelectable | |||||||||
| Frame rate: 30 Frames | |||||||||
| Compress format: MJPEG | |||||||||
| Record fileformat:AVI | |||||||||
| Languages | English and Chinese | ||||||||
| Power Supply | Power adapter: DC5V/2A (USB interface) | ||||||||

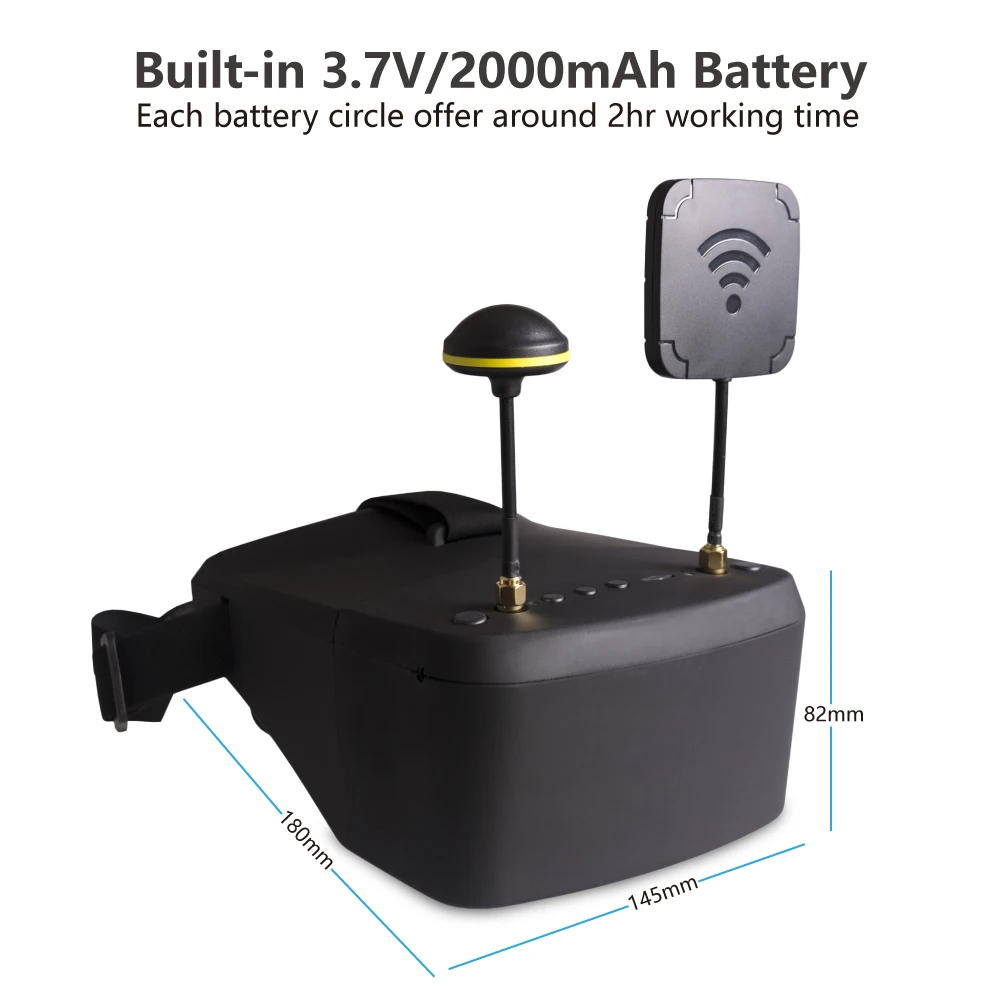

| Battery: 3.7V/2000mAh, DVR module ON:Each full charge revive around2.5hr working time DVR module OFF:Each full charge revive around3.5hr working time | |||||||||
| Power Consumption: *Normal mode: The device operating current of 400mA at 3.7V; *Record Mode : The device operating current of 620mA at 3.7V; * Built-in battery maximum charge current of 500mA; | |||||||||
| Wireless | Frequency Table(MHz) | ||||||||
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | ||
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 | |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 | |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 | |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 | |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 | |
| Body | Dimension:180mm * 140mm *84mm | ||||||||
| Weight: 393g(with headband, not included antennas) | |||||||||
