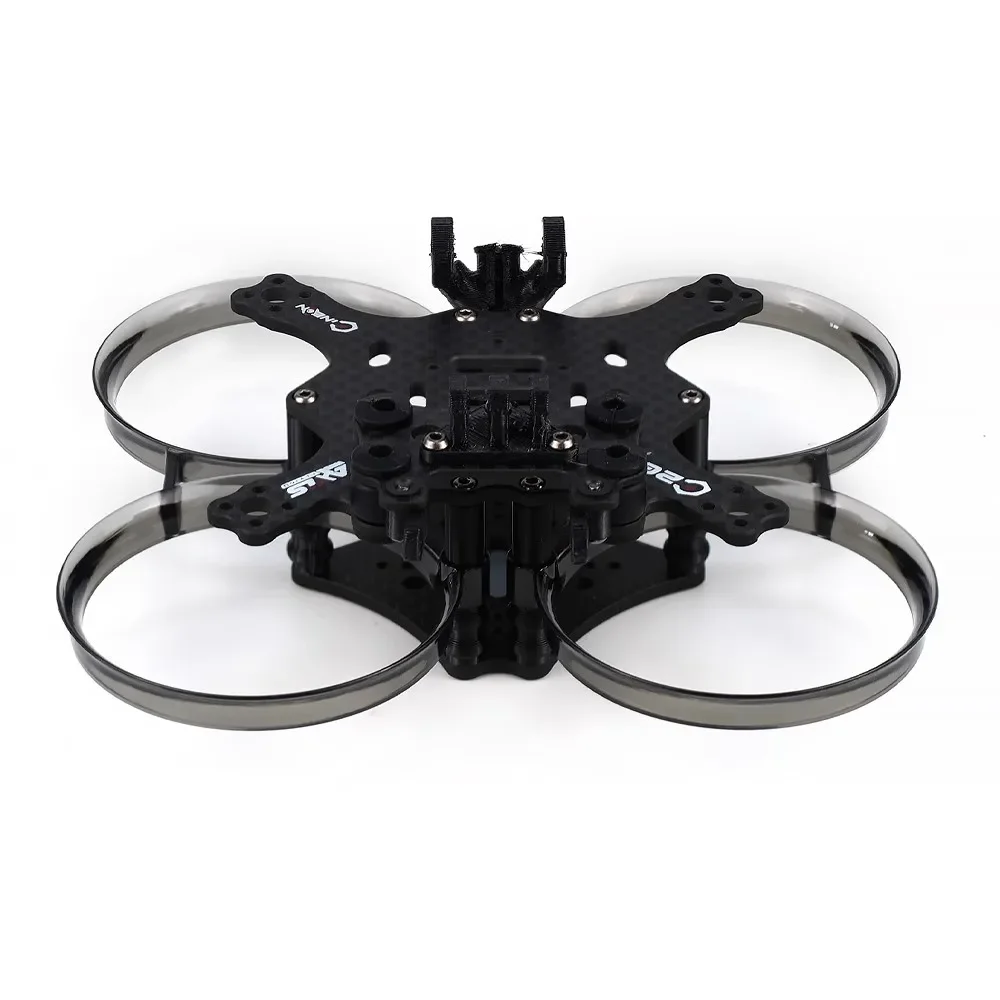

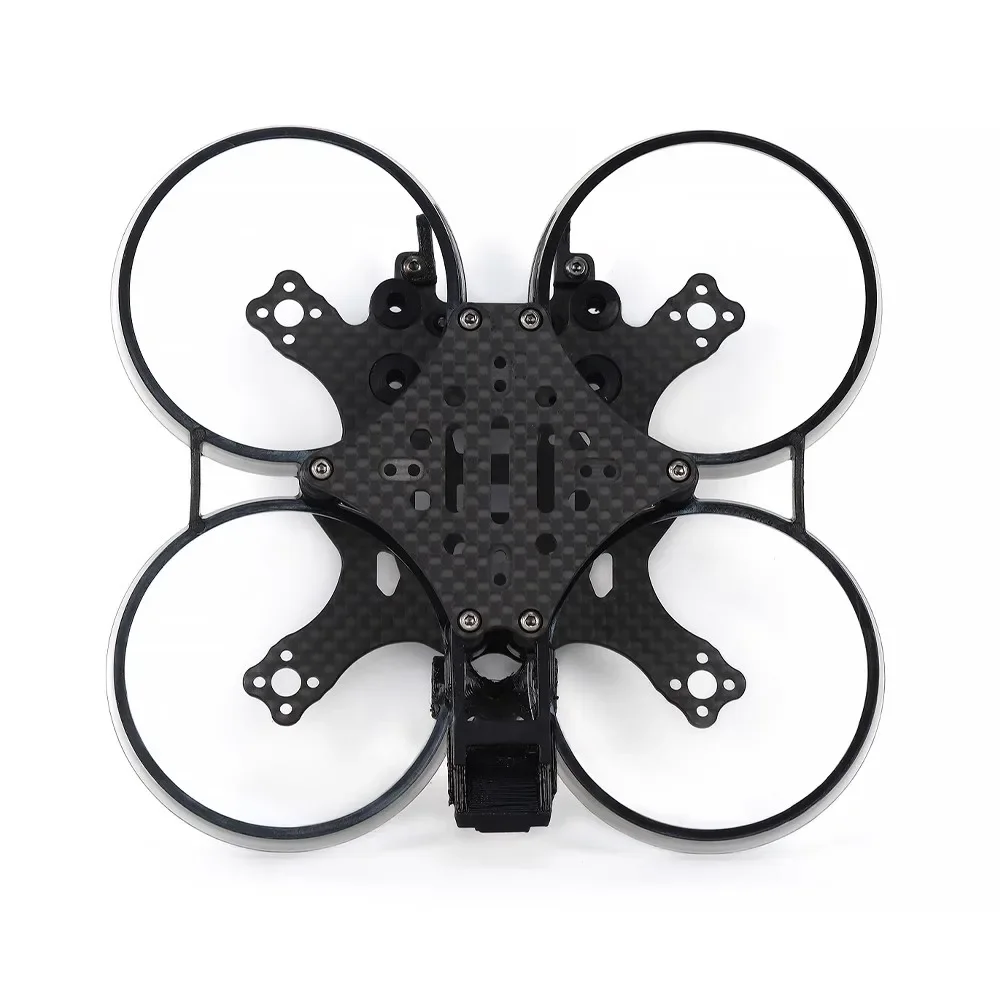

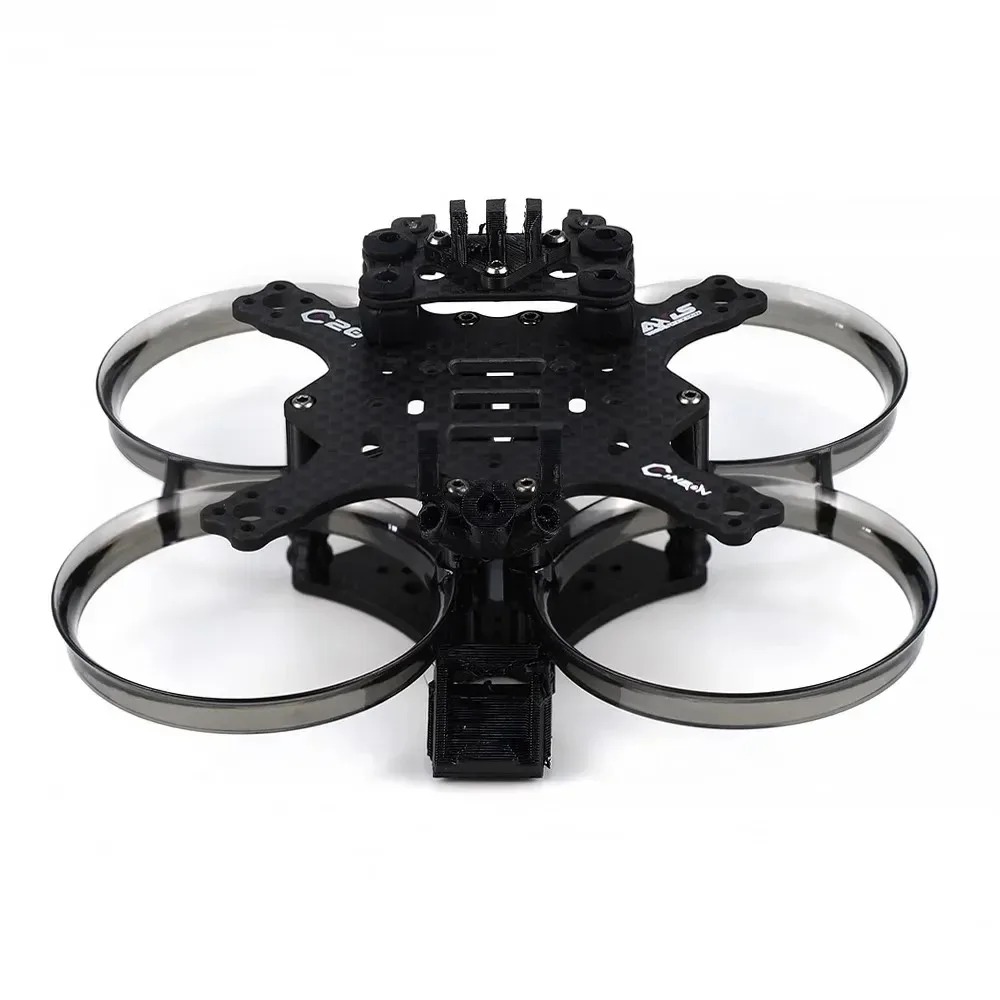

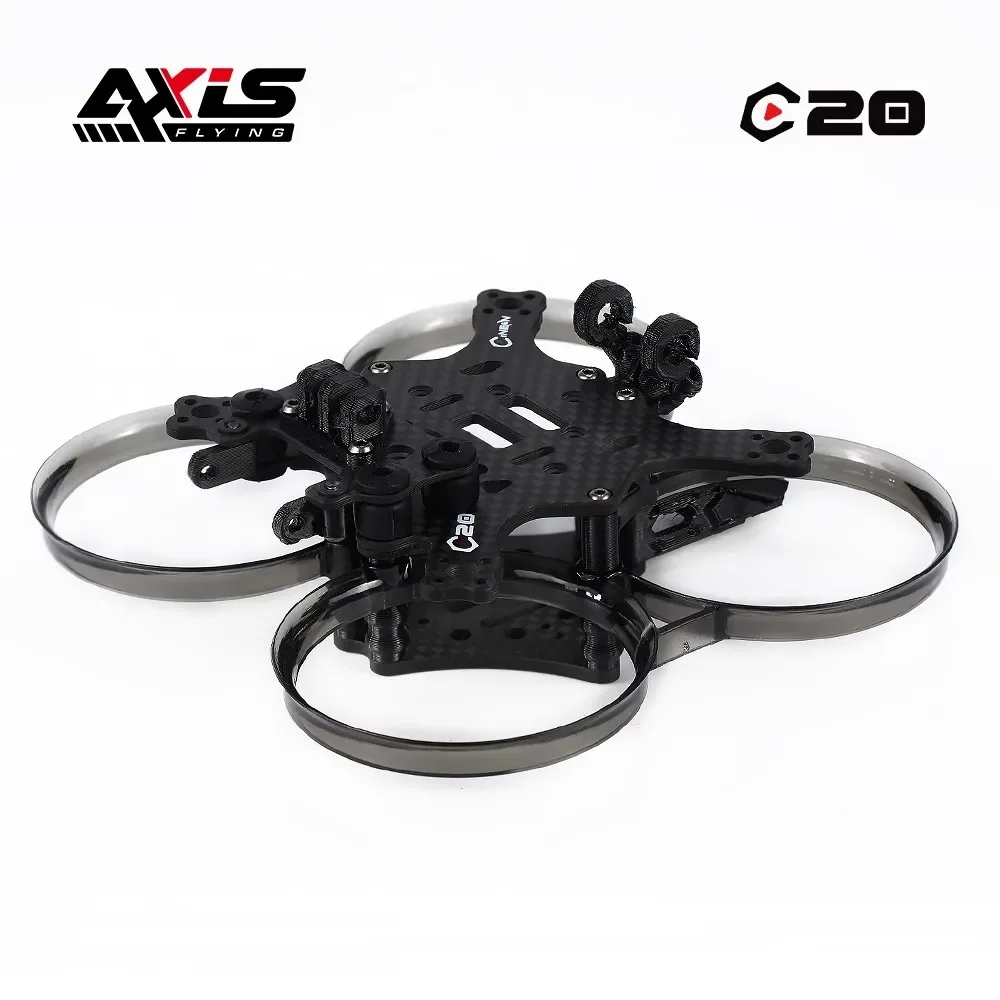

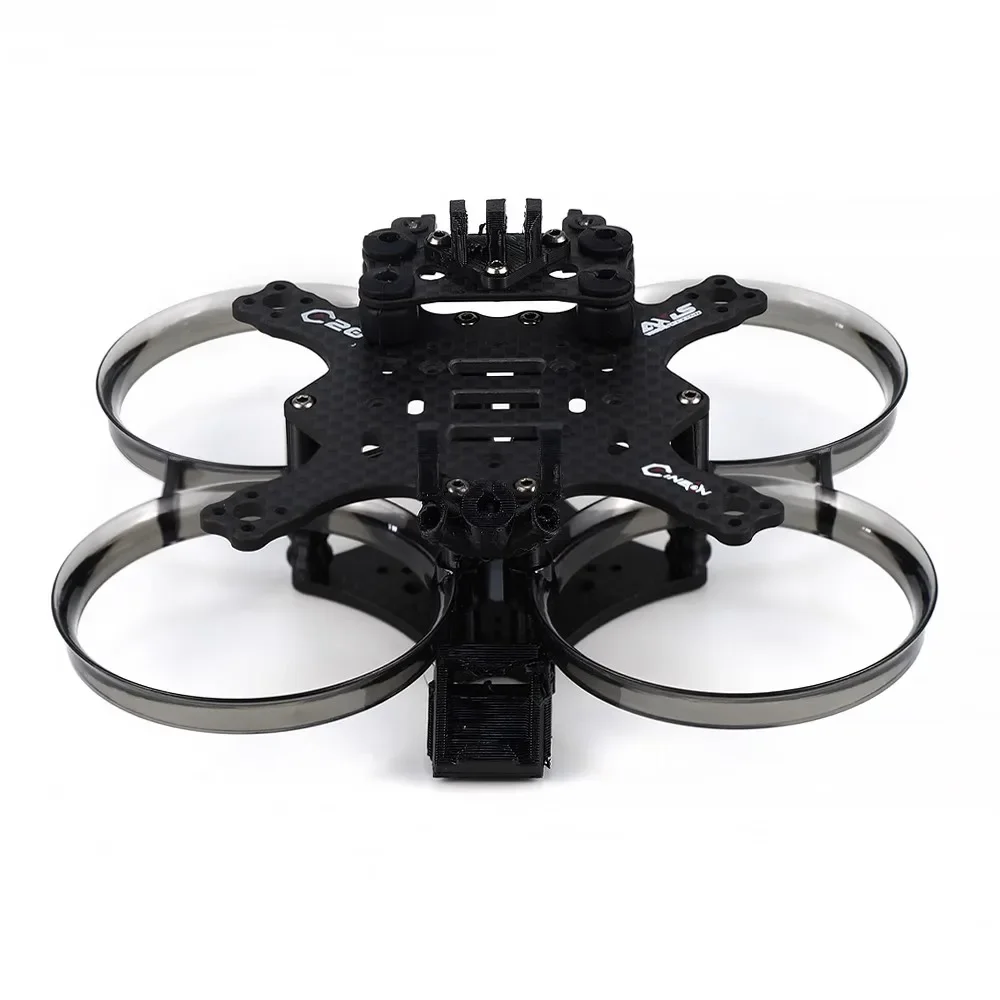

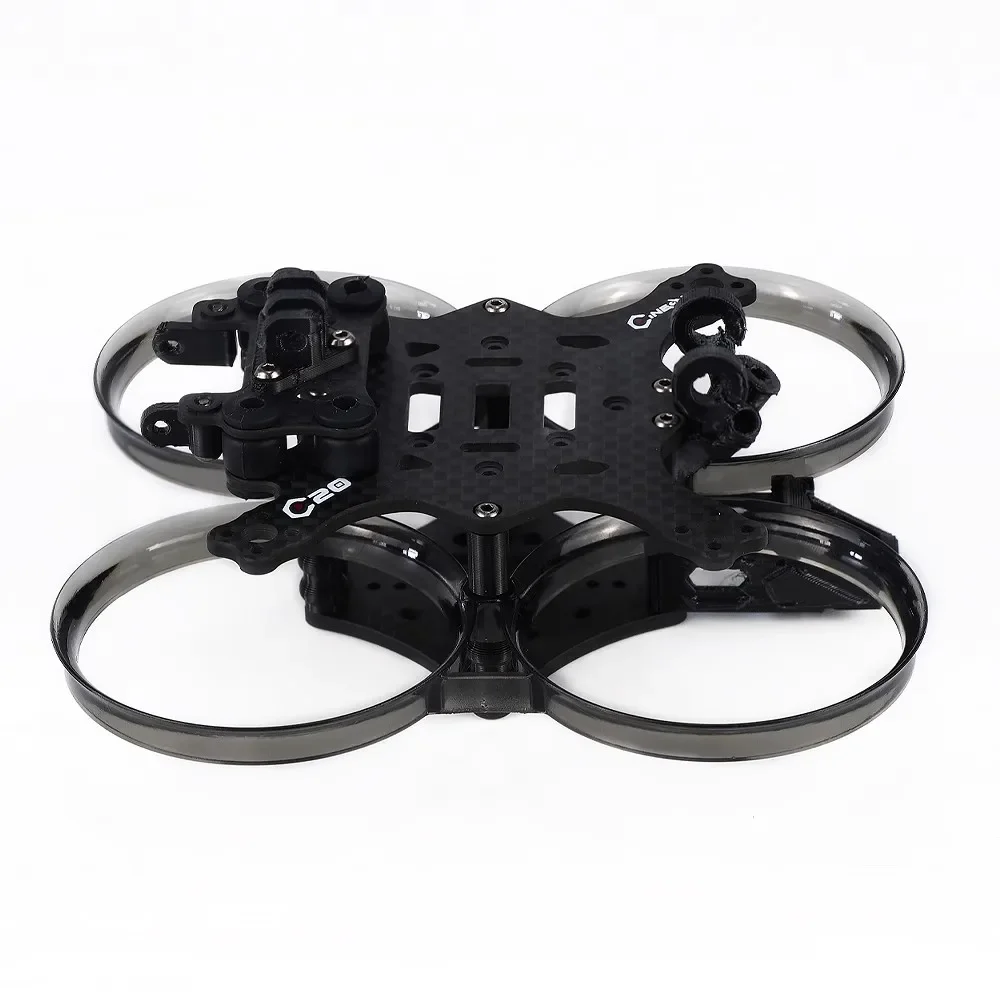

Item: Axisflying C20 Carbon Fiber Frame

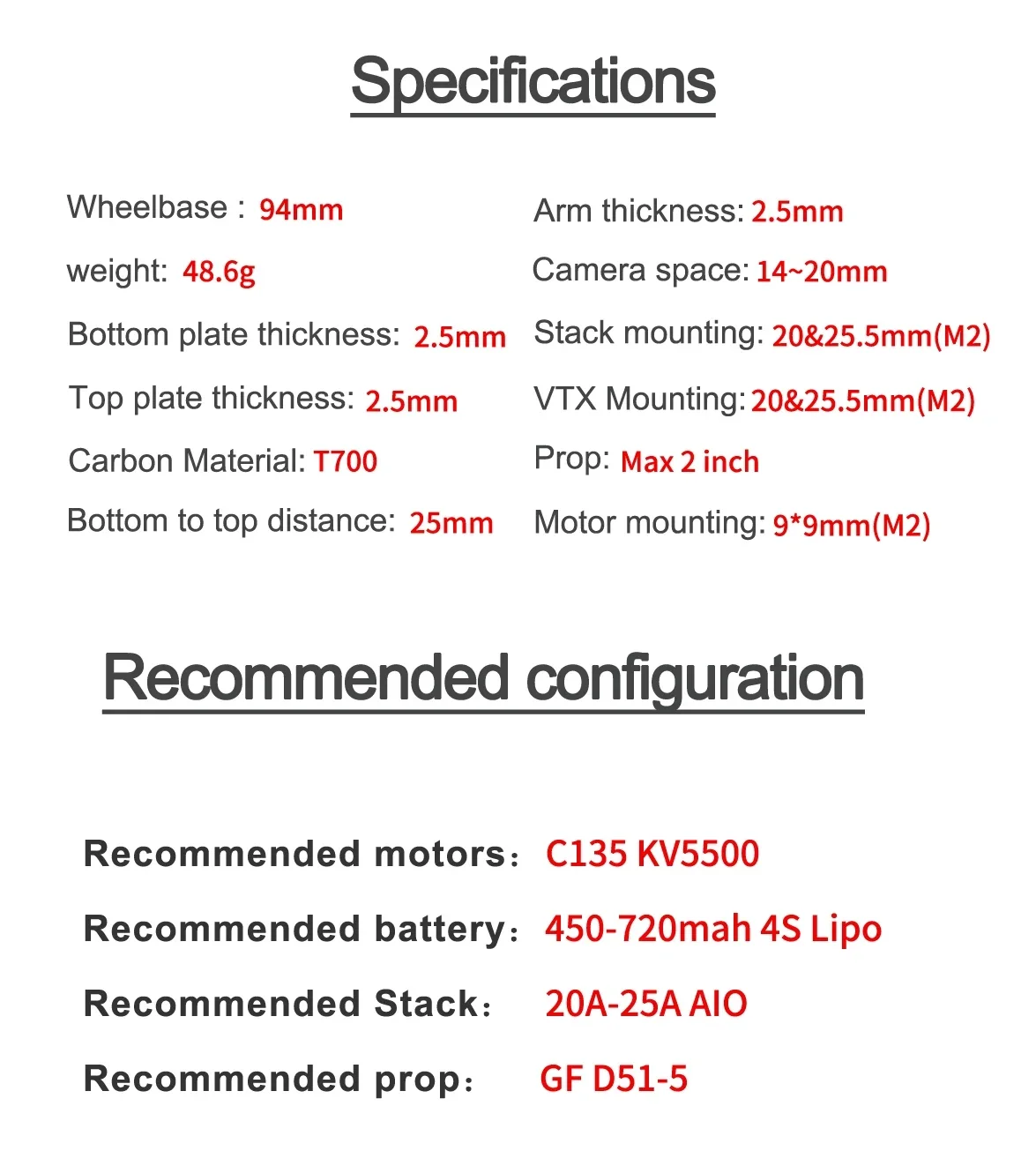

Parameters:

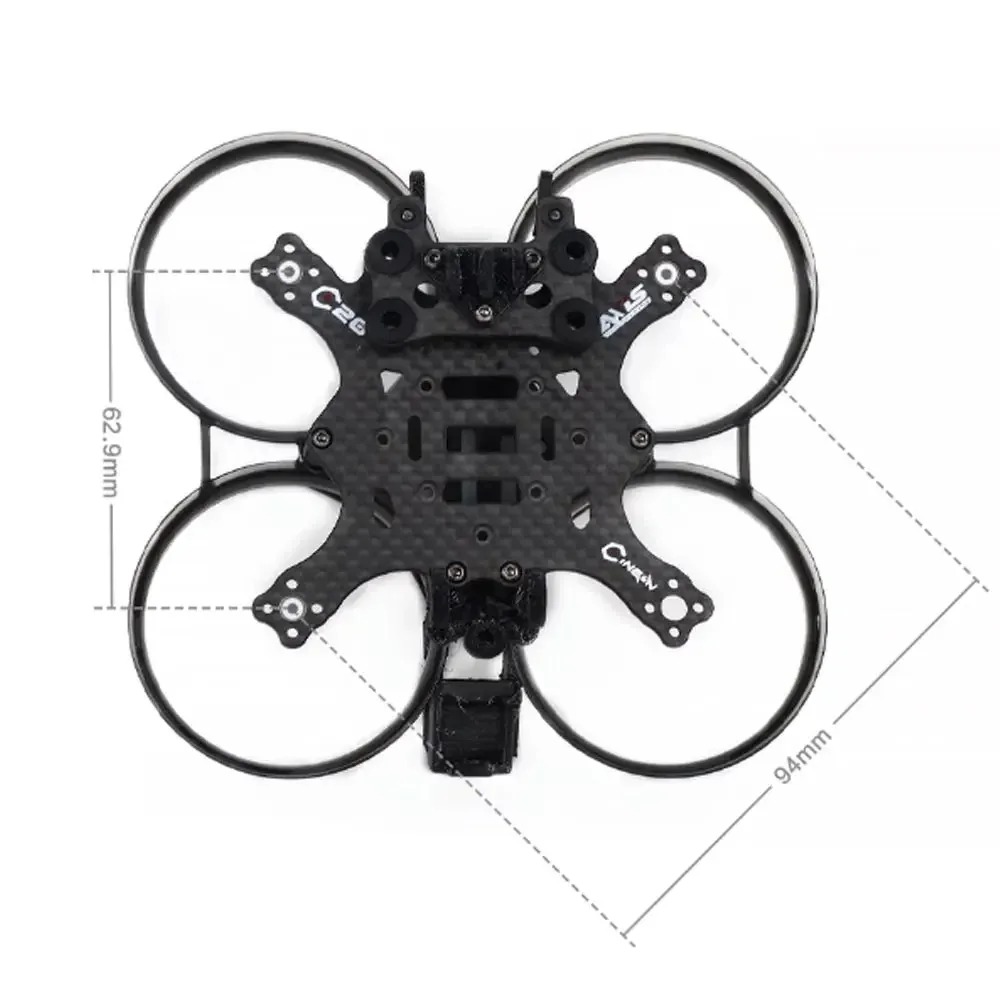

Wheelbase: 94mm
Arm thickness: 2.5mm

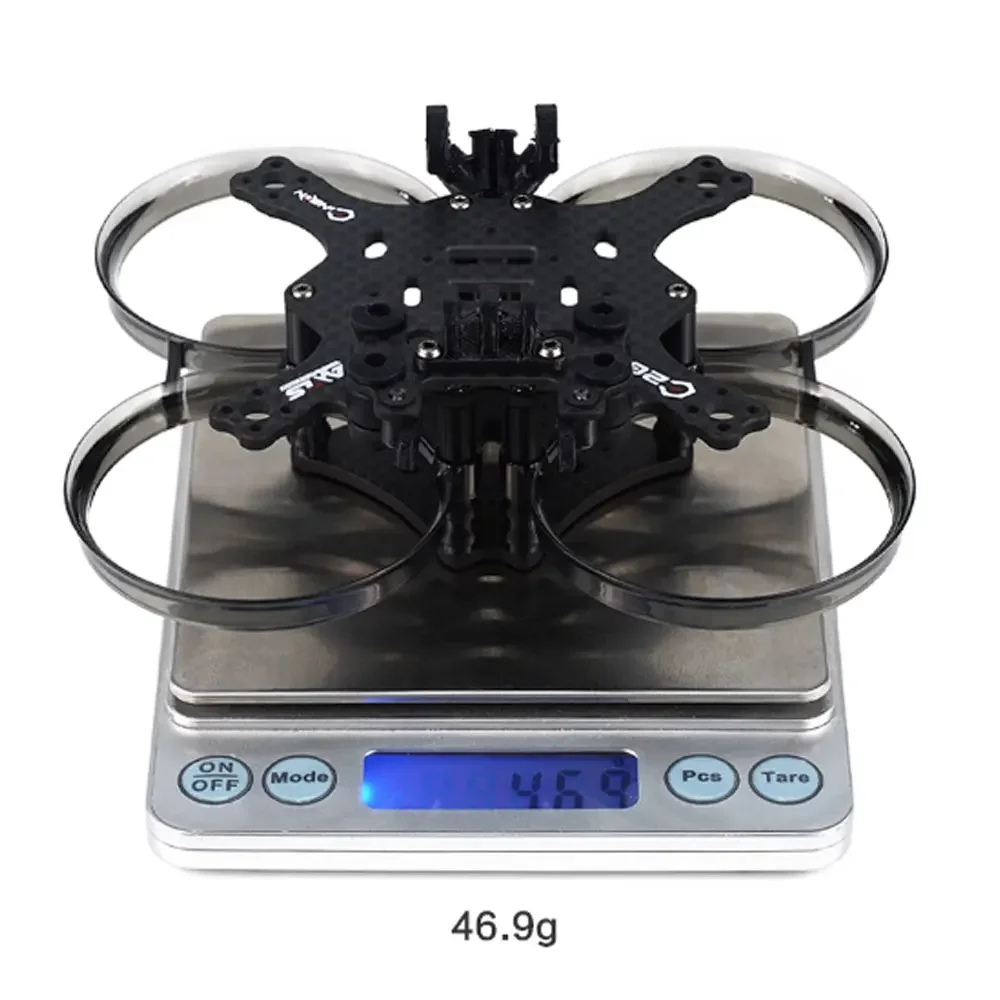

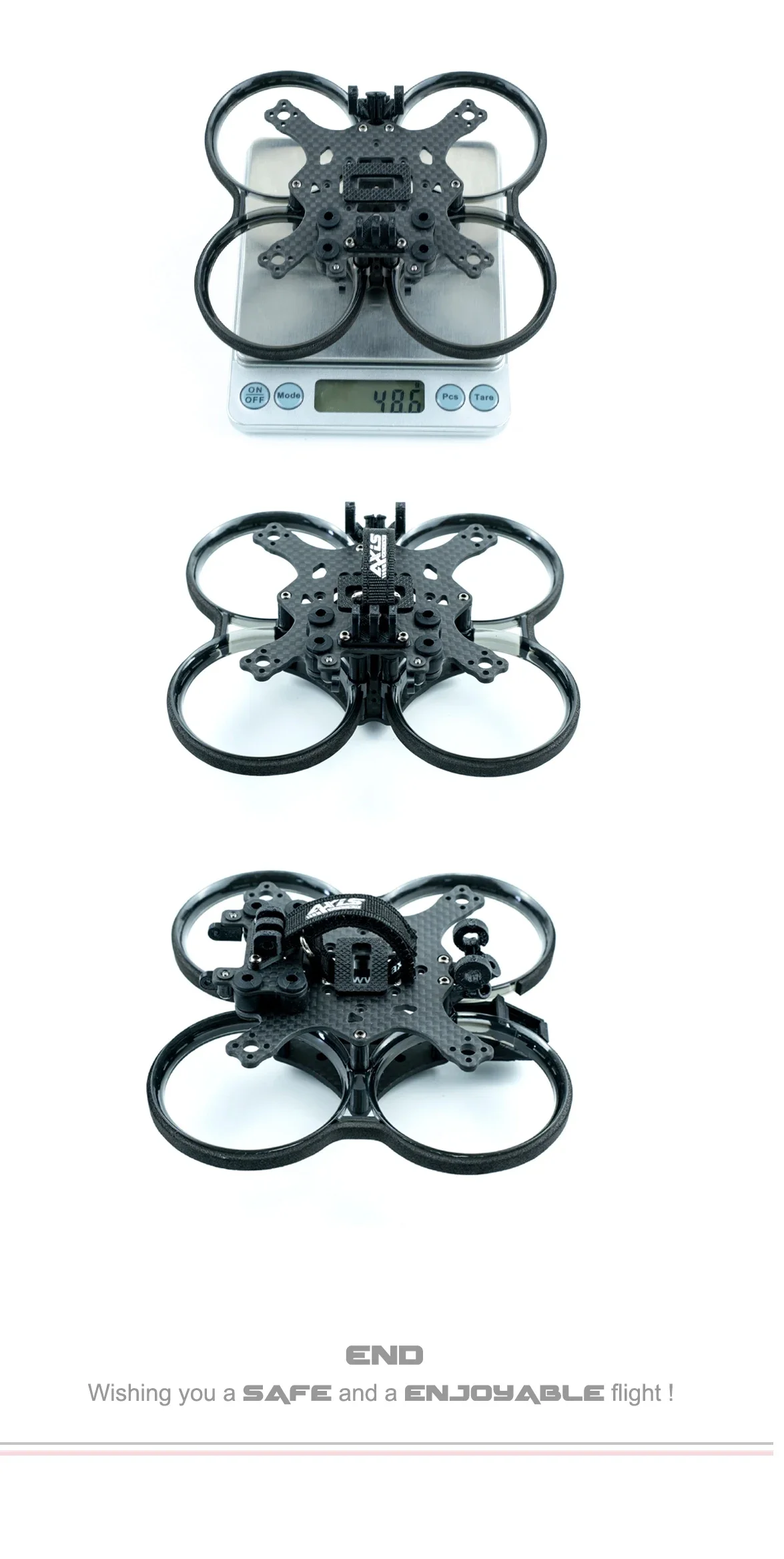

Weight: 48.6g
Top plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Carbon material: T700
Bottom to top distance: 25mm
Camera space: 14~20mm

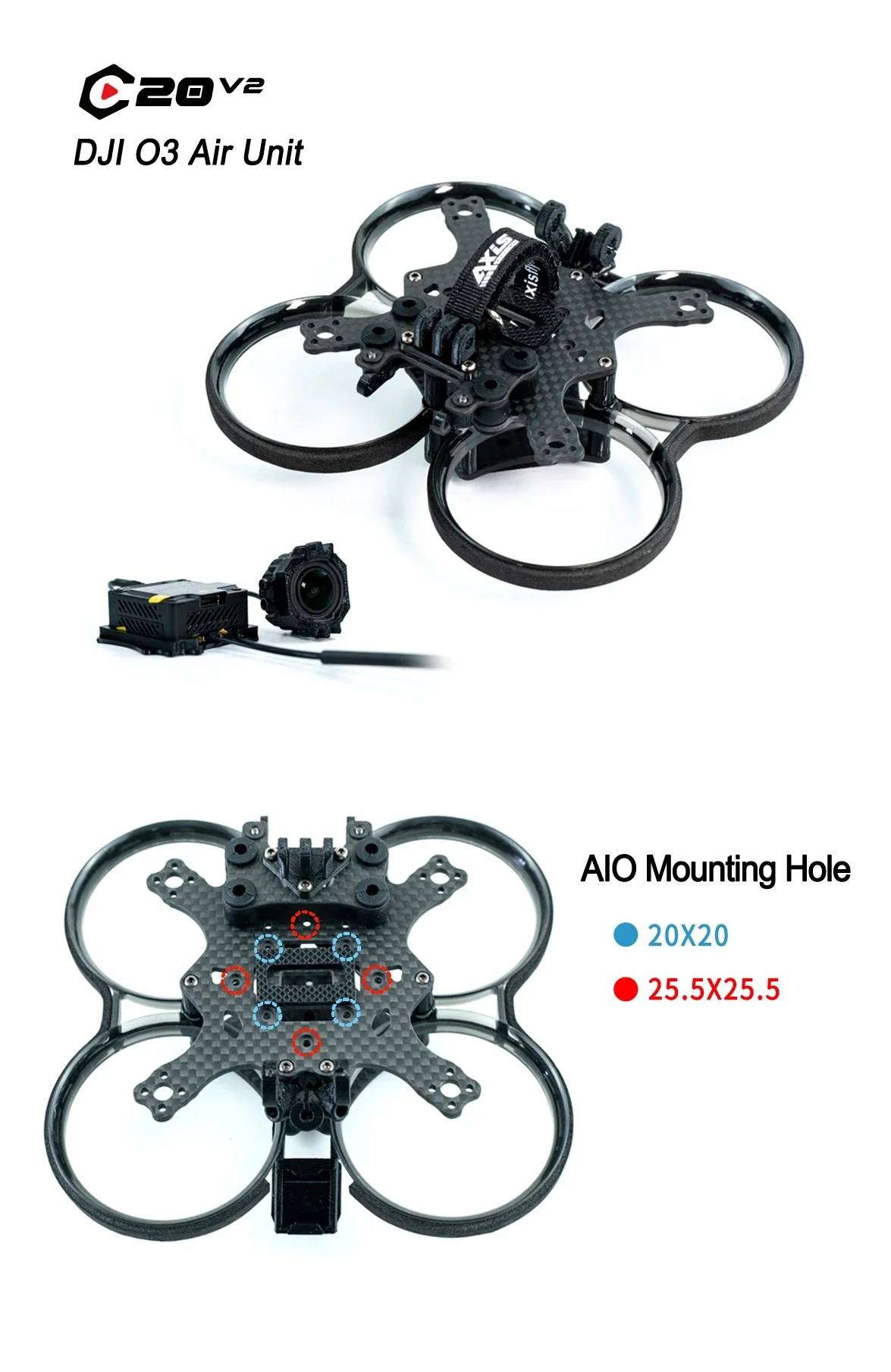

Stack Mounting: 20mm&25.5mm (M2)
VTX Mounting: 20mm&25.5mm (M2)
Prop: Max 2 inch
Motor mounting: 9 * 9mm (M2)
Recommended Motors:C135 5500KV
Recommended Battery:450-720mah(4S Lipo)
Recommended Stack:20~25A AIO
Recommended Propeller :GF 2023-3,GF D51-5
Features:
Motor installation adopts two positive and two reverse design-guaranteed efficiency and higher explosiveness
Better wind resistance for smoother recording c135 motor, more torque and power
Provide sufficient security for the Whoop high power 20a/f411 AIO
Newly developed aero dynamic layout to effectively reduce aircraft noise
Independent receiver storage, convenient for binding
Package Included:
Axisflying C20 Carbon Fiber Frame x 1
