The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

*Forword

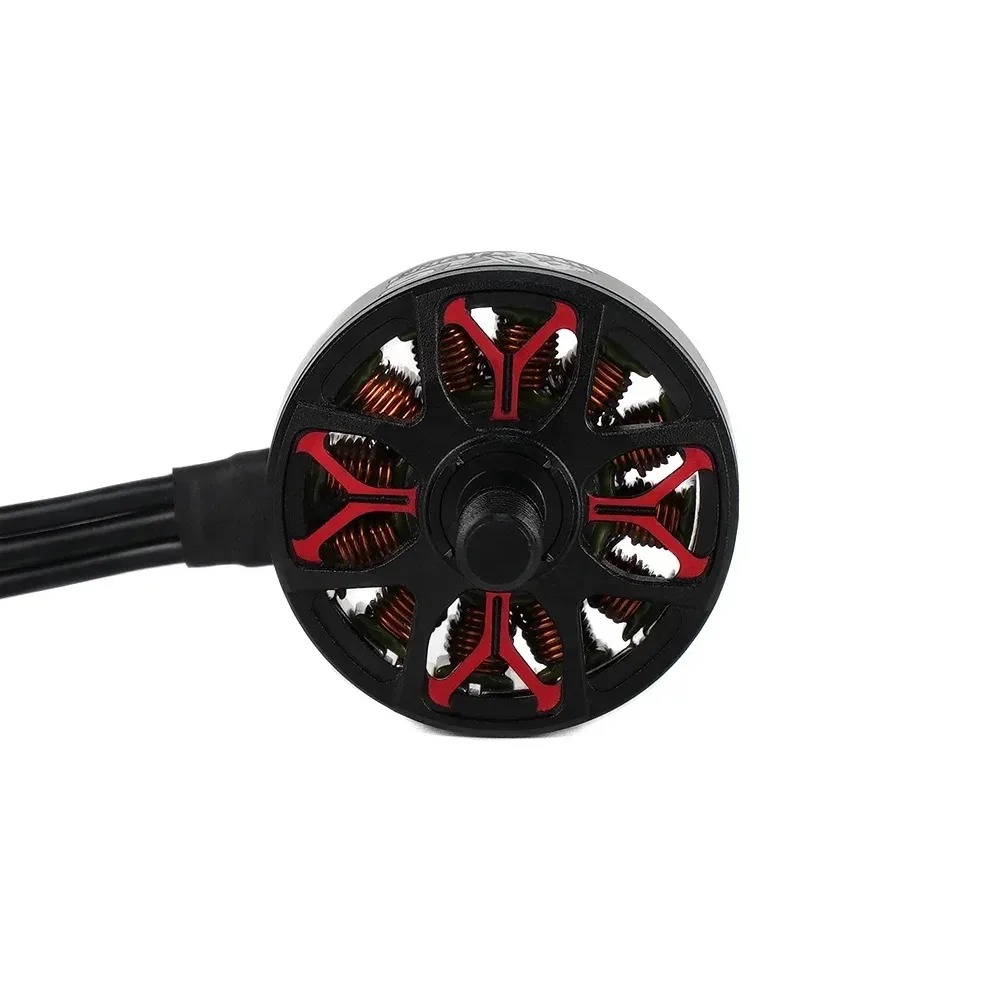

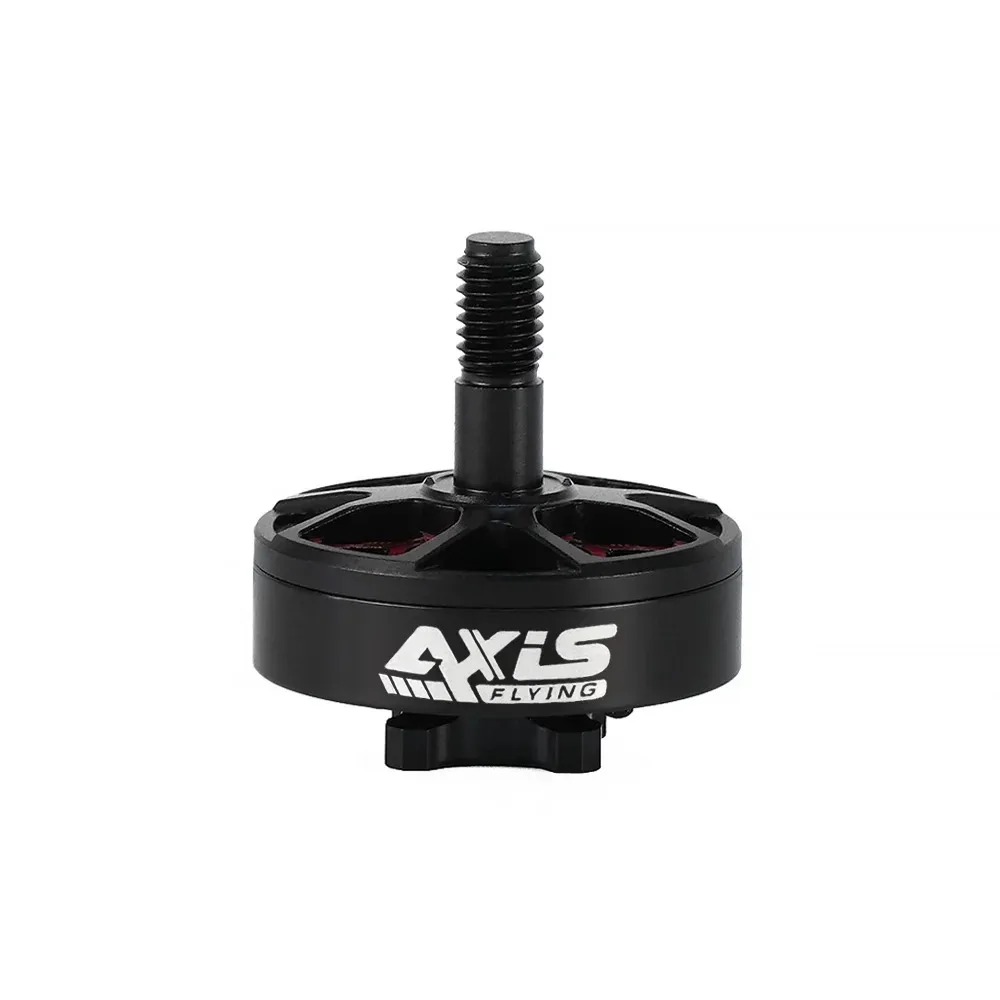

– C224 motor is special designed for 3.5inch cinewhoop and cinematic drone that need more powerful and torque.

– It is easy to carry heavy GoPro10 or GoPro11.

– C224 motors run perfect with Gemfan D90-3 or HQ D90-3 props.

– There are 2 KV for options 2300KV @6S ,3500KV@4S

*Bearing Shield Technology

– An IP53 rating dustproof and waterproof bearing placement design.

– BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

– Increased thrust effciency and say goodbye to crush motor bearings

*Specs

– 2300KV is for 6S / 3500 KV is for 4S

– Configuration: 12N14P / N52H arc magnet

– Motor stator size: 2204.5

– Motor mounting hole size: 4*M2 (Φ12mm)

– Motor cables: AWG 20#, 150MM

– Motor dimensions (Dia *Len): Φ26.9*28.8MM  / M5 shaft

– Motor weight (including 150MM cables) : 21g

– The motor is very powerful that can get over 0.85KG and most current is about 25A
